NSN 4010-00-274-3552
Part Details | COLD SHUT CHAIN LINK
4010-00-274-3552 A split triangular shaped item, having an eye at one end. It is designed to form a loop by driving the opposite end through the eye and peening over. It is used for making repairs or fastening on attachments.
Alternate Parts: N01, 4010-00-274-3552, 00-274-3552, 4010002743552, 002743552
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-274-3552 | 05419 ( LINK, CHAIN, COLD SHUT ) |
REFERENCE DRAWINGS & PICTURES

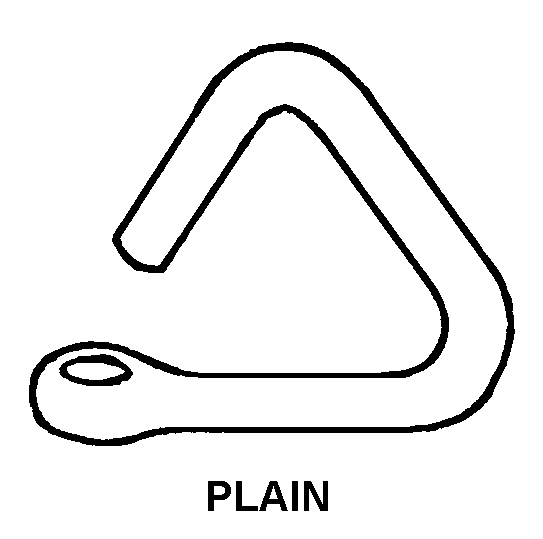

PLAIN
Cross Reference | NSN 4010-00-274-3552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N01 | 79577 | NORTH AND JUDD INCWILCOX-CRITTENDEN DIV |
Technical Data | NSN 4010-00-274-3552
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | PLAIN |
| INSIDE WIDTH | 0.438 INCHES NOMINAL |
| INSIDE LENGTH | 1.125 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.025 INCHES NOMINAL |
