NSN 4010-00-274-5041
Part Details | WIRE ROPE
4010-00-274-5041 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: RRW410, RRW41031, RR-W-410-31, 4010-00-274-5041, 00-274-5041, 4010002745041, 002745041
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-274-5041 | 30295 ( ROPE, WIRE ) |
REFERENCE DRAWINGS & PICTURES

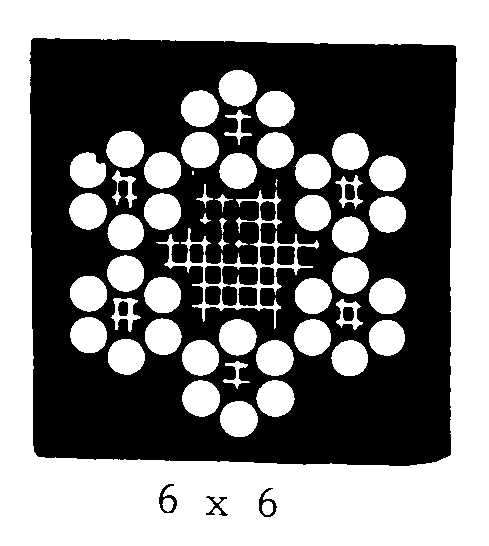

6 X 6
Cross Reference | NSN 4010-00-274-5041
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| RR-W-410-31 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4010-00-274-5041
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 6 |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 600.000 FEET NOMINAL |
| BREAKING STRENGTH | 9711.000 POUNDS MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 CLASS |
| END ITEM IDENTIFICATION | ELEVATOR |
