NSN 4010-00-290-4349
Part Details | SWING CHAIN LINK
4010-00-290-4349 A metal item in two halves making a figure 8 which is pivoted at the center for quick assembly of two parts. Excludes LINK, CHAIN, DETACHABLE.
Alternate Parts: 4010-00-290-4349, 00-290-4349, 4010002904349, 002904349
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-290-4349 | 02621 ( LINK, CHAIN, SWING ) |
REFERENCE DRAWINGS & PICTURES

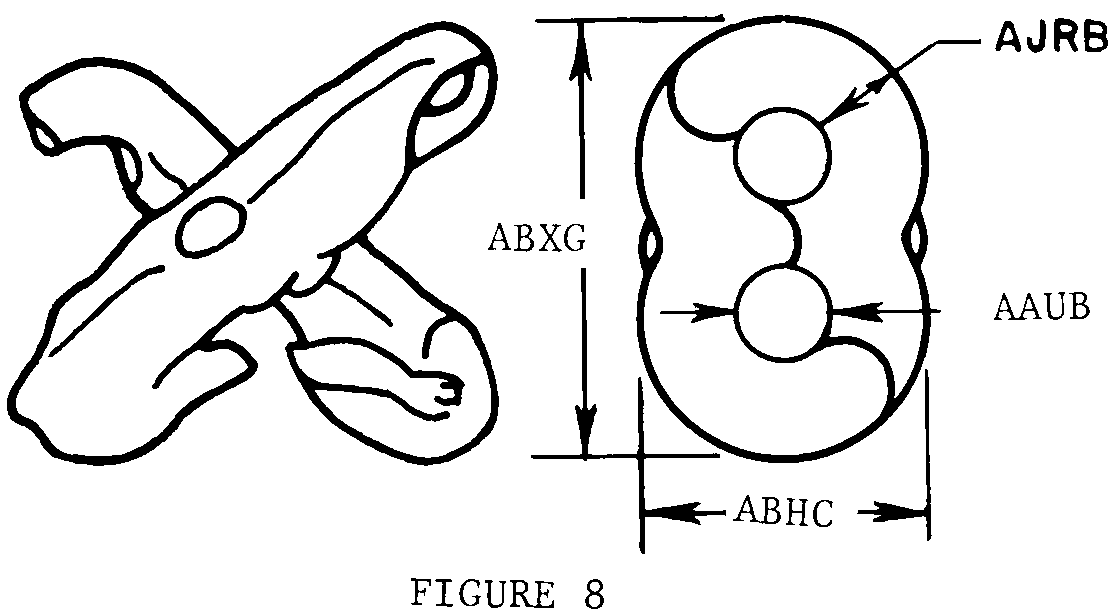

FIGURE 8
Cross Reference | NSN 4010-00-290-4349
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 4010-00-290-4349
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | FIGURE 8 |
| OVERALL WIDTH | 1.344 INCHES NOMINAL |
| OVERALL LENGTH | 2.531 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.375 INCHES NOMINAL |
