NSN 4010-00-414-5302
Part Details | SWING CHAIN LINK
4010-00-414-5302 A metal item in two halves making a figure 8 which is pivoted at the center for quick assembly of two parts. Excludes LINK, CHAIN, DETACHABLE.
Alternate Parts: 8B7016, 5190427, A2007, 5190427, 5190427, A2007, 4010-00-414-5302, 00-414-5302, 4010004145302, 004145302
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1961 | 00-414-5302 | 02621 ( LINK, CHAIN, SWING ) |

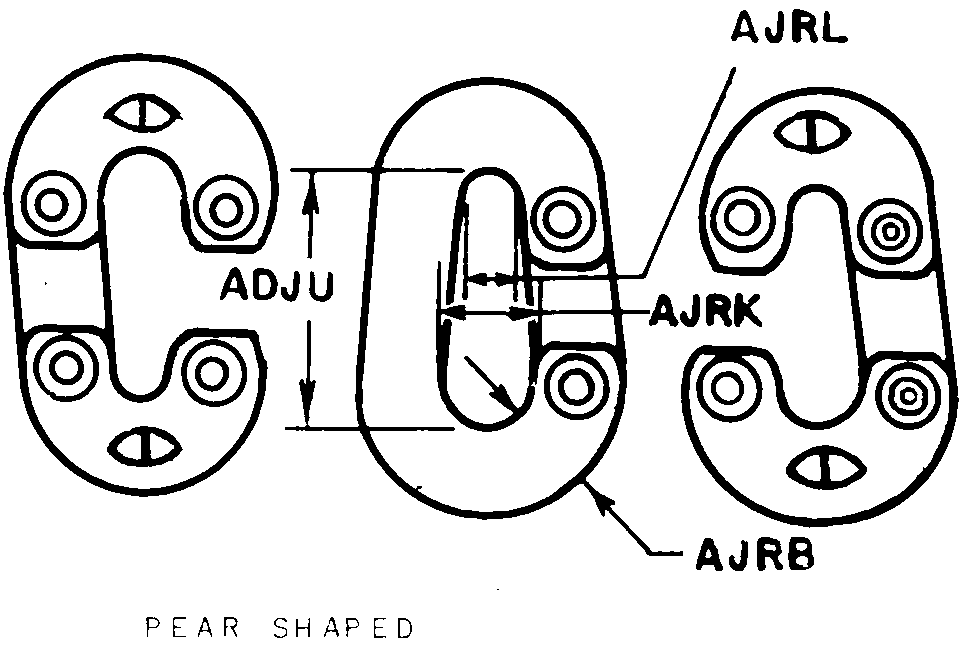

REFERENCE DRAWINGS & PICTURES
PEAR SHAPED
Cross Reference | NSN 4010-00-414-5302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8B7016 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 5190427 | 24617 | GENERAL MOTORS CORP |
| A2007 | 80072 | H20 TANK INCU S MOTORS DIV |
| 5190427 | 72582 | MTU AMERICA INC. |
| 5190427 | 61208 | TWIN DISC INCORPORATED |
| A2007 | 61208 | TWIN DISC INCORPORATED |
Technical Data | NSN 4010-00-414-5302
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | PEAR SHAPED |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
