NSN 4010-00-476-5349
Part Details | WIRE ROPE
4010-00-476-5349 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: 6X31 516, 6X31 5-16, 4010-00-476-5349, 00-476-5349, 4010004765349, 004765349
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JUN 11, 1971 | 00-476-5349 | 30295 ( ROPE, WIRE ) |

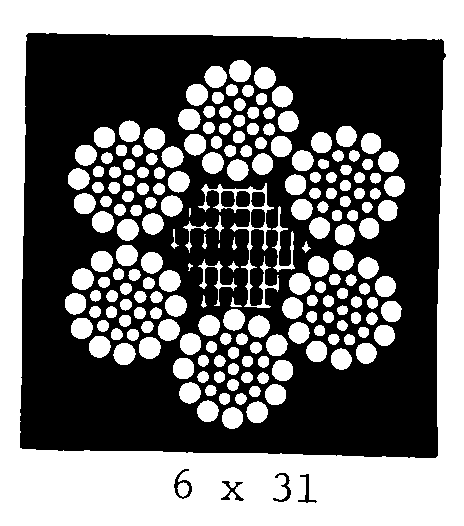

REFERENCE DRAWINGS & PICTURES
6 X 31
Cross Reference | NSN 4010-00-476-5349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6X31 5-16 | 26904 | SKY CLIMBER INCSUB OF WESTERN GEAR MACHINERY CO |
Technical Data | NSN 4010-00-476-5349
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 31 |
| PREFABRICATION FORM | PREFORMED |
| BREAKING STRENGTH | 2000.000 POUNDS NOMINAL |
| SPECIAL FEATURES | LUBRICATED FIBER CENTER |
