NSN 4010-00-702-0659
Part Details | WIRE ROPE
4010-00-702-0659 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: RRW410, 4010-00-702-0659, 00-702-0659, 4010007020659, 007020659
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1963 | 00-702-0659 | 30295 ( ROPE, WIRE ) |
REFERENCE DRAWINGS & PICTURES

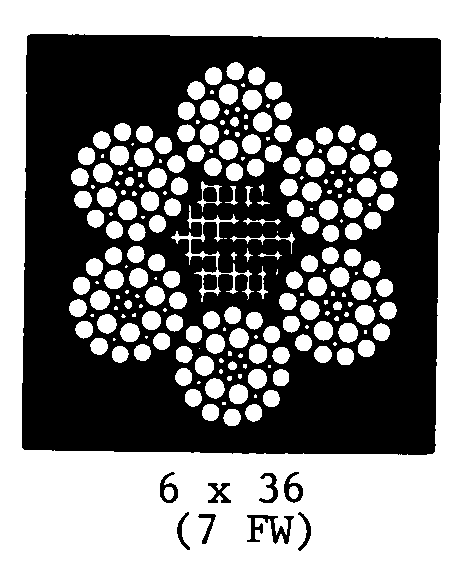

6 X 36 (7 FW)
Cross Reference | NSN 4010-00-702-0659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4010-00-702-0659
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 36 (7 FW) |
| PREFABRICATION FORM | PREFORMED |
| BREAKING STRENGTH | 77610.000 POUNDS MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND 3 CLASS AND 7 CONSTRUCTION |
