NSN 4010-00-889-2190
Part Details | WIRE ROPE
4010-00-889-2190 Three or more metallic strands twisted helically together around a fiber, metallic, or combination wire and fiber core. Excludes items rated for electric current carrying applications.
Alternate Parts: RRW410, 4010-00-889-2190, 00-889-2190, 4010008892190, 008892190
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | JAN 01, 1962 | 00-889-2190 | 30295 ( ROPE, WIRE ) |

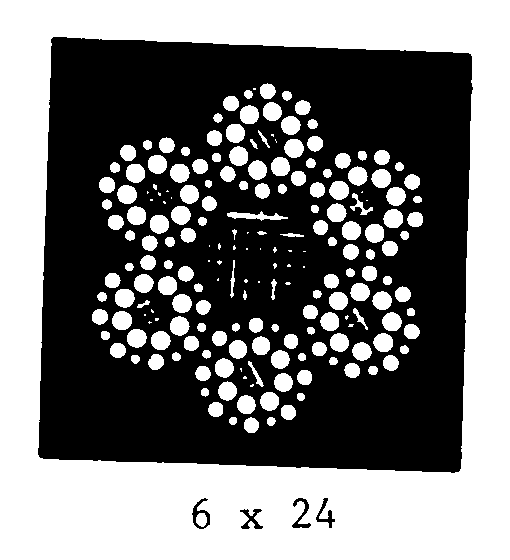

REFERENCE DRAWINGS & PICTURES
6 X 24
Cross Reference | NSN 4010-00-889-2190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRW410 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4010-00-889-2190
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | FIBER |
| STYLE DESIGNATOR | 6 X 24 |
| PREFABRICATION FORM | PREFORMED |
| BREAKING STRENGTH | 98865.000 POUNDS MINIMUM |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 3 CLASS AND 2 CONSTRUCTION |
