NSN 4010-01-472-9766
Part Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-472-9766 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Alternate Parts: 768009, 768009, 4010-01-472-9766, 01-472-9766, 4010014729766, 014729766
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAR 23, 2000 | 01-472-9766 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES

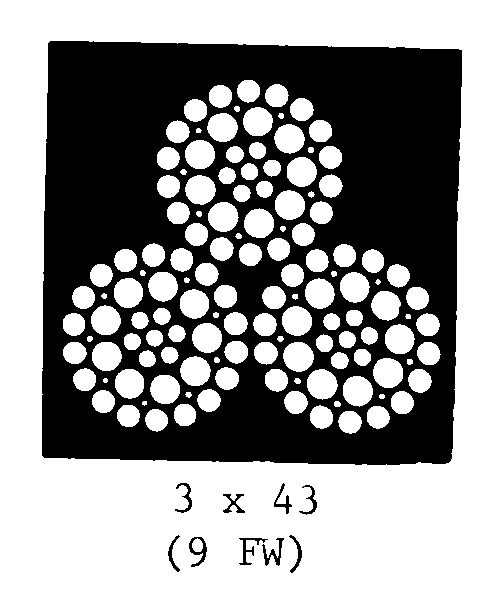

3 X 43 (9 FW)
Cross Reference | NSN 4010-01-472-9766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 768009 | 52661 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT & WHITNEY |
| 768009 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4010-01-472-9766
| Characteristic | Specifications |
|---|---|
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | 8 3 X 43 (9 FW) |
| BREAKING STRENGTH | 170.0 POUNDS NOMINAL |
| SPECIAL FEATURES | MFG NAME-WIRE ROPE-SINGLE LEG,REAR COMPRESSOR CASE, ASSY |
| END ITEM IDENTIFICATION | TF-33/103 ENGINE |
