NSN 4010-01-595-1193
Part Details | CONNECTING CHAIN LINK
4010-01-595-1193 A metal item in two halves in the shape of a letter C which are fixed together permanently by placing the two halves together and peening over the pins which are an integral part of the item. Excludes LINK, ROLLER CHAIN.
Alternate Parts: 2528376, 4010-01-595-1193, 01-595-1193, 4010015951193, 015951193
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | APR 25, 2011 | 01-595-1193 | 02620 ( LINK, CHAIN, CONNECTING ) |

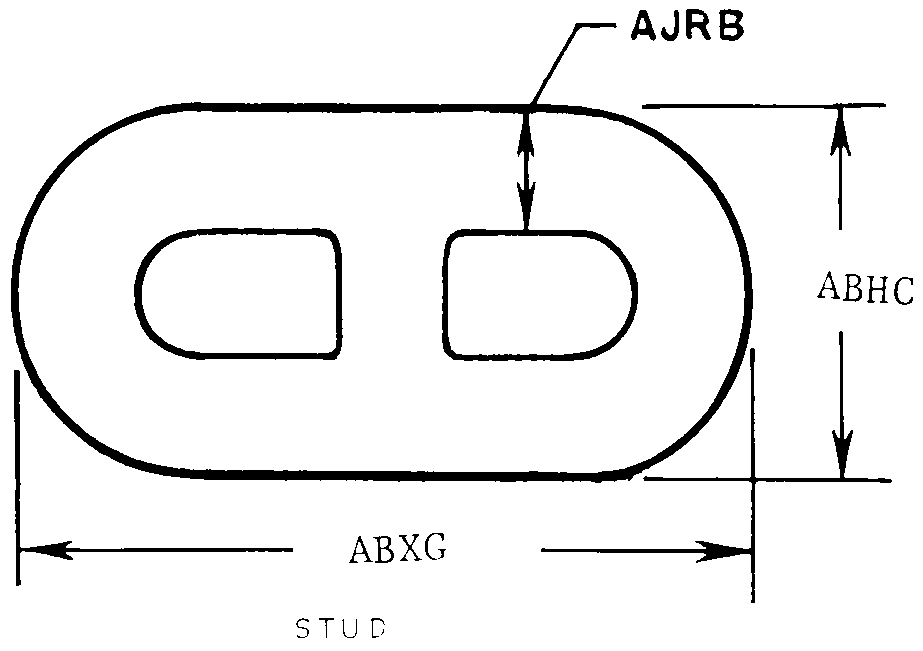

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 4010-01-595-1193
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2528376 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 4010-01-595-1193
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 |
| STYLE DESIGNATOR | STUD |
| OVERALL WIDTH | 0.437 INCHES NOMINAL |
| OVERALL LENGTH | 1.187 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.125 INCHES NOMINAL |
