NSN 4010-01-595-7531
Part Details | DETACHABLE LINK
4010-01-595-7531 A metal link made in two or more pieces, held securely together by means of a locking pin or other device but may taken apart for reuse. It is used to connect a chain and/or a cable and/or a rope and/or a strap, and the like. Excludes transmission chain links.
Alternate Parts: S01600003, S0160-0003, 4010-01-595-7531, 01-595-7531, 4010015957531, 015957531
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAY 05, 2011 | 01-595-7531 | 68660 ( LINK, DETACHABLE ) |

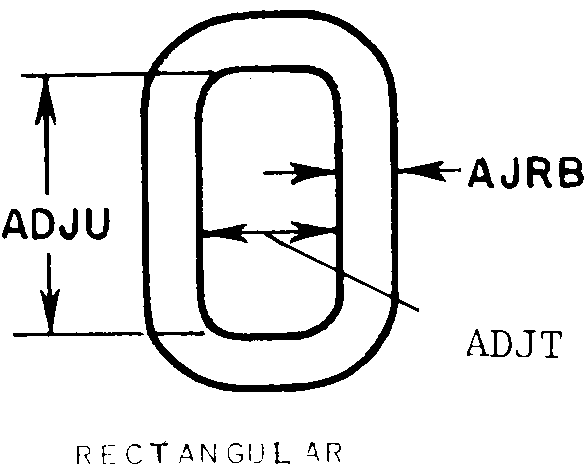

REFERENCE DRAWINGS & PICTURES
RECTANGULAR
Cross Reference | NSN 4010-01-595-7531
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S0160-0003 | 1CXX6 | SUNCOR STAINLESS, INC. |
Technical Data | NSN 4010-01-595-7531
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | RECTANGULAR |
| INSIDE WIDTH | 0.125 INCHES NOMINAL |
| INSIDE LENGTH | 1.160 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.134 INCHES NOMINAL |
| BREAKING STRENGTH | 200.0 POUNDS MAXIMUM |
| SPECIAL FEATURES | THREADED OPENING; 10-24 UNC; HEX NUT 0.485 LENGTH. |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | QUICK LINK |
