NSN 4010-01-617-4614
Part Details | CONNECTING CHAIN LINK
4010-01-617-4614 A metal item in two halves in the shape of a letter C which are fixed together permanently by placing the two halves together and peening over the pins which are an integral part of the item. Excludes LINK, ROLLER CHAIN.
Alternate Parts: 33585T91, 4010-01-617-4614, 01-617-4614, 4010016174614, 016174614
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | MAR 22, 2013 | 01-617-4614 | 02620 ( LINK, CHAIN, CONNECTING ) |

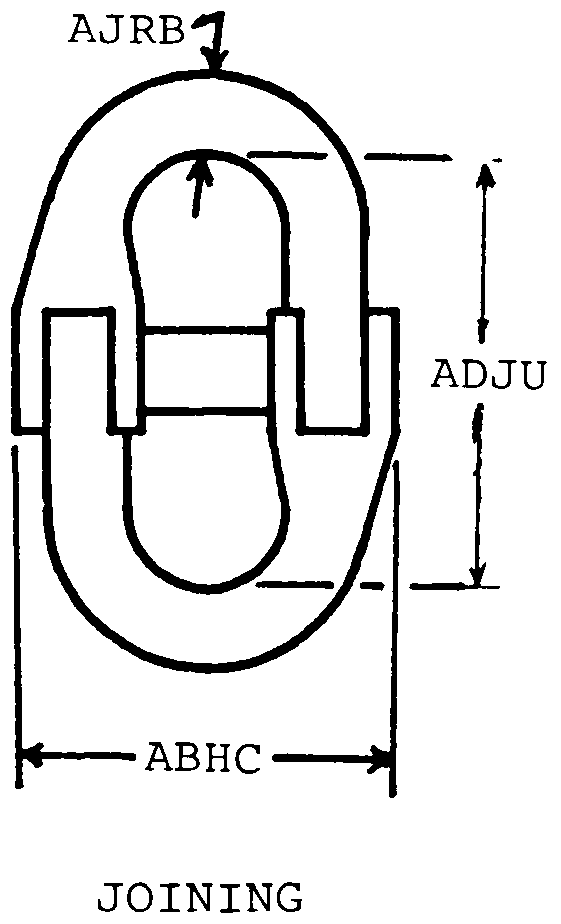

REFERENCE DRAWINGS & PICTURES
JOINING
Cross Reference | NSN 4010-01-617-4614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33585T91 | 2V507 | MCMASTER-CARR SUPPLY COMPANY |
Technical Data | NSN 4010-01-617-4614
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | JOINING |
| INSIDE LENGTH | 1.750 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| MAJOR INSIDE WIDTH | 0.562 INCHES NOMINAL |
| SPECIAL FEATURES | WARNING] NEVER EXCEED WORK LOAD LIMIT 2700.0 POUNDS |
