NSN 4020-01-648-2571
Part Details | SINGLE LEG FIBER ROPE ASSEMBLY
4020-01-648-2571 An assembly of fiber rope with or without terminal attachments in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain intermediate and/or end attachments such as sliding or fixed ring(s) or hook(s).
Alternate Parts: 070048ABBVO, 070048-ABBVO, 4020-01-648-2571, 01-648-2571, 4020016482571, 016482571
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | SEP 19, 2015 | 01-648-2571 | 09766 ( FIBER ROPE ASSEMBLY, SINGLE LEG ) |
REFERENCE DRAWINGS & PICTURES
THIMBLE AND PLAIN END

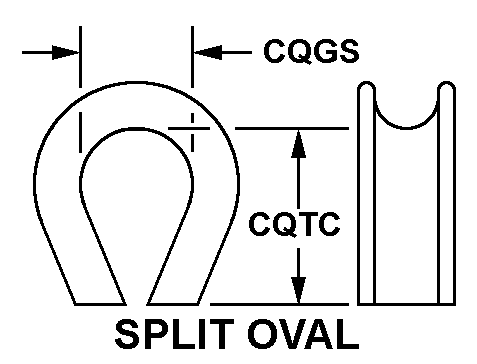

SPLIT OVAL
Cross Reference | NSN 4020-01-648-2571
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 070048-ABBVO | 27232 | OCEAN PRODUCTS RESEARCH, INC. |
Technical Data | NSN 4020-01-648-2571
| Characteristic | Specifications |
|---|---|
| STRAND QUANTITY | 12 |
| CIRCUMFERENCE | 0.250 INCHES NOMINAL |
| COLOR | BLUE |
| ROPE STYLE | THIMBLE AND PLAIN END |
| LENGTH | 48.0 FEET NOMINAL |
| LOOP RETENTION METHOD | SPLICE |
| THIMBLE STYLE | SPLIT OVAL |
| OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| THIMBLE INSIDE WIDTH | 0.9 INCHES NOMINAL |
| THIMBLE INSIDE LENGTH | 3.0 INCHES NOMINAL |
| ROPE END CONDITIONING METHOD | BACK SPLICED |
| ASSEMBLY MATERIAL AND LOCATION | PLASTIC, POLYETHYLENE CORE |
