NSN 4030-01-249-6027
Part Details | SHACKLE
4030-01-249-6027 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Alternate Parts: M853AP, 4030-01-249-6027, 01-249-6027, 4030012496027, 012496027
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | FEB 13, 1987 | 01-249-6027 | 11074 ( SHACKLE ) |
REFERENCE DRAWINGS & PICTURES

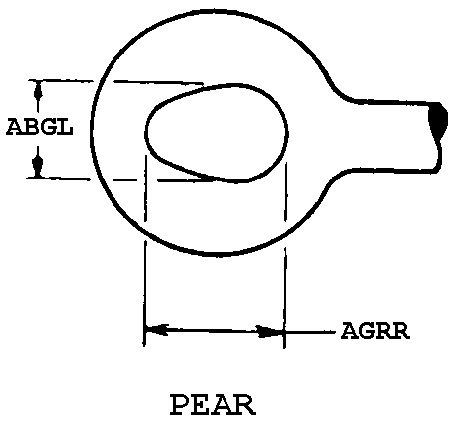

PEAR
HEXAGON
ANCHOR
Cross Reference | NSN 4030-01-249-6027
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M853AP | 90202 | COLUMBUS MCKINNON CORPORATIONDBA MIDLAND FORGE DIVISION |
Technical Data | NSN 4030-01-249-6027
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| STYLE DESIGNATOR | ANCHOR |
| OPENING WIDTH | 1.438 INCHES NOMINAL |
| INSIDE LENGTH | 3.250 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.875 INCHES NOMINAL |
| CLOSURE HEAD STYLE | HEXAGON |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | COTTER PIN |
| EYELET STYLE | PEAR |
| WIDTH | 2.313 INCHES NOMINAL |
| EYELET HEIGHT | 3.250 INCHES NOMINAL |
