NSN 4140-01-278-3874
Part Details | CIRCULATING FAN
4140-01-278-3874 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Alternate Parts: 37087, OSC 243P, 4140012783874, 4140-01-278-3874, FCNE 88458 SZ2, FCNE 88-458 SZ2, FCNE 88458, FCNE 88-458, 4140-01-278-3874, 01-278-3874, 4140012783874, 012783874
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | MAY 05, 1988 | 01-278-3874 | 30260 ( FAN, CIRCULATING ) |
REFERENCE DRAWINGS & PICTURES

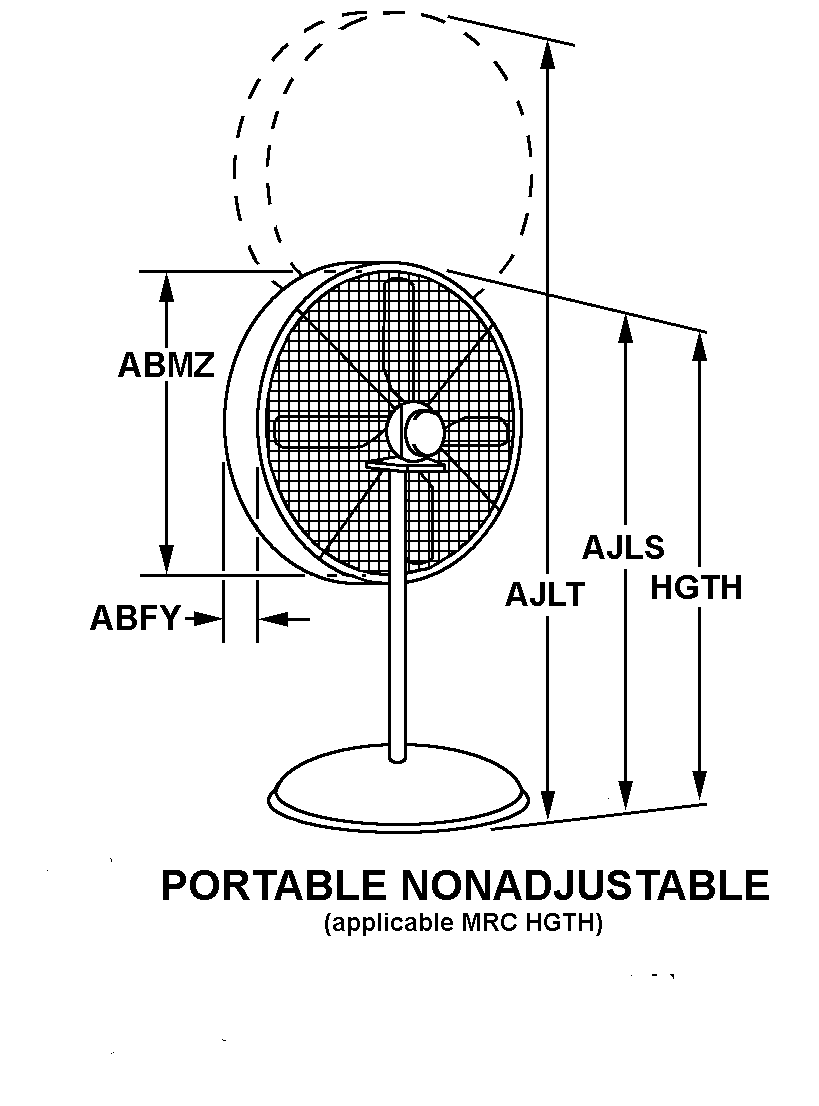

PORTABLE NONADJUSTABLE
Cross Reference | NSN 4140-01-278-3874
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37087 | 00388 | AIRMASTER FAN COMPANYDBA AUTUMAIRE FAN |
| OSC 243P | 00383 | FRIGIDDIV OF ROBESON SALES CORP |
| 4140-01-278-3874 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| FCNE 88-458 SZ2 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| FCNE 88-458 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 4140-01-278-3874
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A PORTABLE NONADJUSTABLE |
| SHORTEST HEIGHT | 54.000 INCHES NOMINAL |
| EXTENDED HEIGHT | 84.000 INCHES NOMINAL |
| QUANTITY | 1 |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | TWO SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| PRIME MOVER POWER RATING | 240.0 WATTS |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 3925.0 CUBIC FEET PER MINUTE MINIMUM AND 5350.0 CUBIC FEET PER MINUTE MAXIMUM |
| FLOW DIRECTION | OUTWARD |
| FEATURES PROVIDED | SAFETY IMPELLER GUARD |
| SPECIAL FEATURES | BLADE MADE OF PLASTIC OR METAL |
