NSN 4140-01-288-2949
Part Details | CENTRIFUGAL FAN HOUSING
4140-01-288-2949 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: 1005274595, 1005274-595, 1005274595, 1005274-595, 1005274595, 1005274-595, 1005274, 4140-01-288-2949, 01-288-2949, 4140012882949, 012882949
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | NOV 04, 1988 | 01-288-2949 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |
REFERENCE DRAWINGS & PICTURES

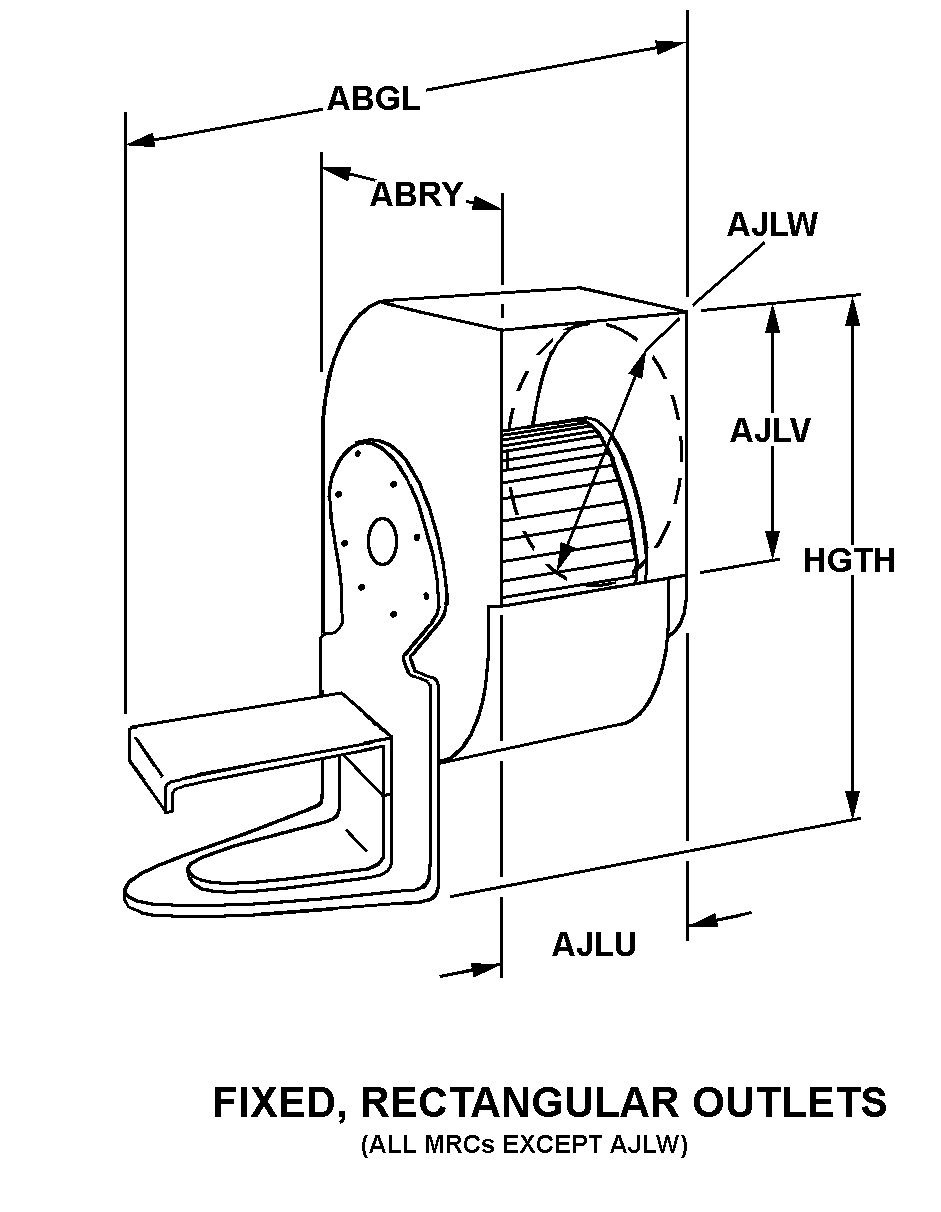

FIXED, RECTANGULAR OUTLETS
Cross Reference | NSN 4140-01-288-2949
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1005274-595 | N1595 | COLT INDUSTRIER A/S |
| 1005274-595 | N5183 | ERTEC AS |
| 1005274-595 | 62633 | GOLAR METAL INC |
| 1005274 | 62633 | GOLAR METAL INC |
Technical Data | NSN 4140-01-288-2949
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | A FIXED, RECTANGULAR OUTLETS |
| WIDTH | 1310.0 MILLIMETERS NOMINAL |
| LENGTH | 960.0 MILLIMETERS NOMINAL |
| OUTLET INSIDE DIAMETER | 410.0 MILLIMETERS NOMINAL |
| HEIGHT | 1200.0 MILLIMETERS NOMINAL |
| PRIME MOVER FOR WHICH DESIGNED | ELECTRIC MOTOR |
| END ITEM IDENTIFICATION | CENTRIFUGAL FAN,GOLAR METAL P/N 8479 |
