NSN 4140-01-304-2950
Part Details | CENTRIFUGAL FAN
4140-01-304-2950 A nonpositive displacement mechanical device having a centrifugal fan impeller inclosed within a housing. It is designed to move air or gas over a wide range of volumes and pressures. The air or gas is drawn in axially and discharged radially or drawn in radially and discharged axially by centrifugal force through an outlet in the housing.
Alternate Parts: 1000, MDL1000, 4140-01-304-2950, 01-304-2950, 4140013042950, 013042950
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | JUL 15, 1989 | 01-304-2950 | 04254 ( FAN, CENTRIFUGAL ) |

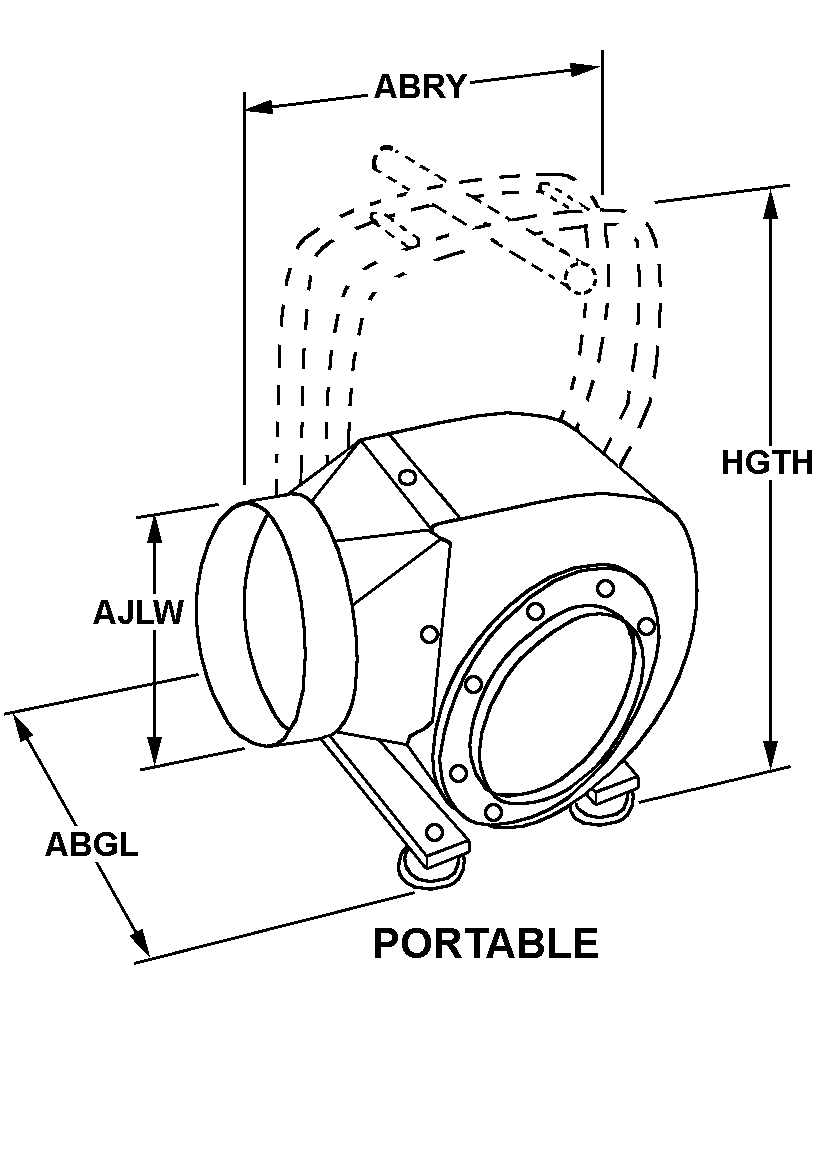

REFERENCE DRAWINGS & PICTURES
PORTABLE
Cross Reference | NSN 4140-01-304-2950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1000 | 27119 | T. A. PELSUE COMPANYDBA PELSUE CO |
| MDL1000 | 27119 | T. A. PELSUE COMPANYDBA PELSUE CO |
Technical Data | NSN 4140-01-304-2950
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | PORTABLE |
| WIDTH | 15.500 INCHES NOMINAL |
| HEIGHT | 15.000 INCHES NOMINAL |
| DRIVE TYPE | DIRECT |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| INCLOSURE TYPE | FULLY INCLOSED |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| PRIME MOVER POWER RATING | 0.333 HORSEPOWER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 120.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 913.0 CUBIC FEET PER MINUTE NOMINAL |
