NSN 4140-01-308-8779
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-308-8779 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: 468.797, 4140-01-308-8779, 01-308-8779, 4140013088779, 013088779
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | OCT 06, 1989 | 01-308-8779 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

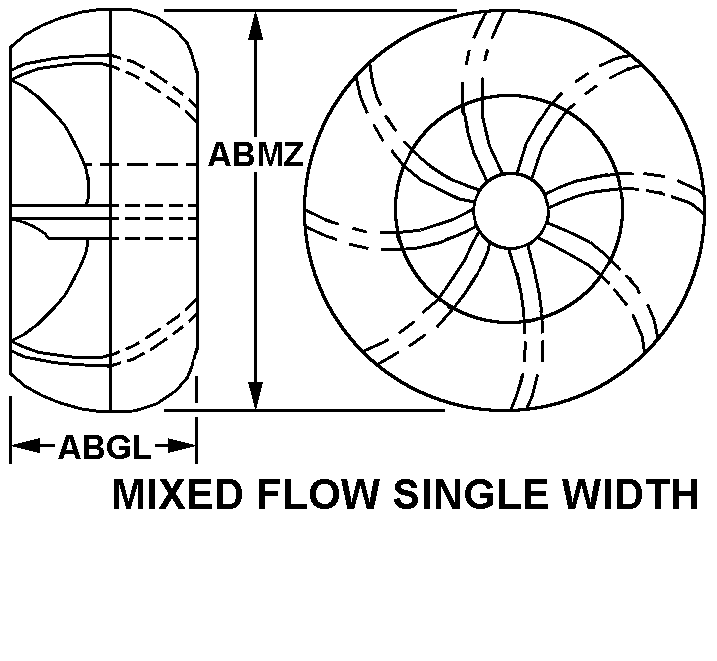

MIXED FLOW SINGLE WIDTH
Cross Reference | NSN 4140-01-308-8779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 468.797 | 62380 | WEBASTO THERMOSYSTEMS INC |
Technical Data | NSN 4140-01-308-8779
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MIXED FLOW SINGLE WIDTH |
| WIDTH | 57.8 MILLIMETERS NOMINAL |
| DIAMETER | 135.0 MILLIMETERS NOMINAL |
| BLADE QUANTITY | 7 |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
