NSN 4140-01-328-3958
Part Details | CENTRIFUGAL FAN HOUSING
4140-01-328-3958 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: 2011440055, 201-14-4005-5, 4140-01-328-3958, 01-328-3958, 4140013283958, 013283958
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | OCT 31, 1990 | 01-328-3958 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |
REFERENCE DRAWINGS & PICTURES

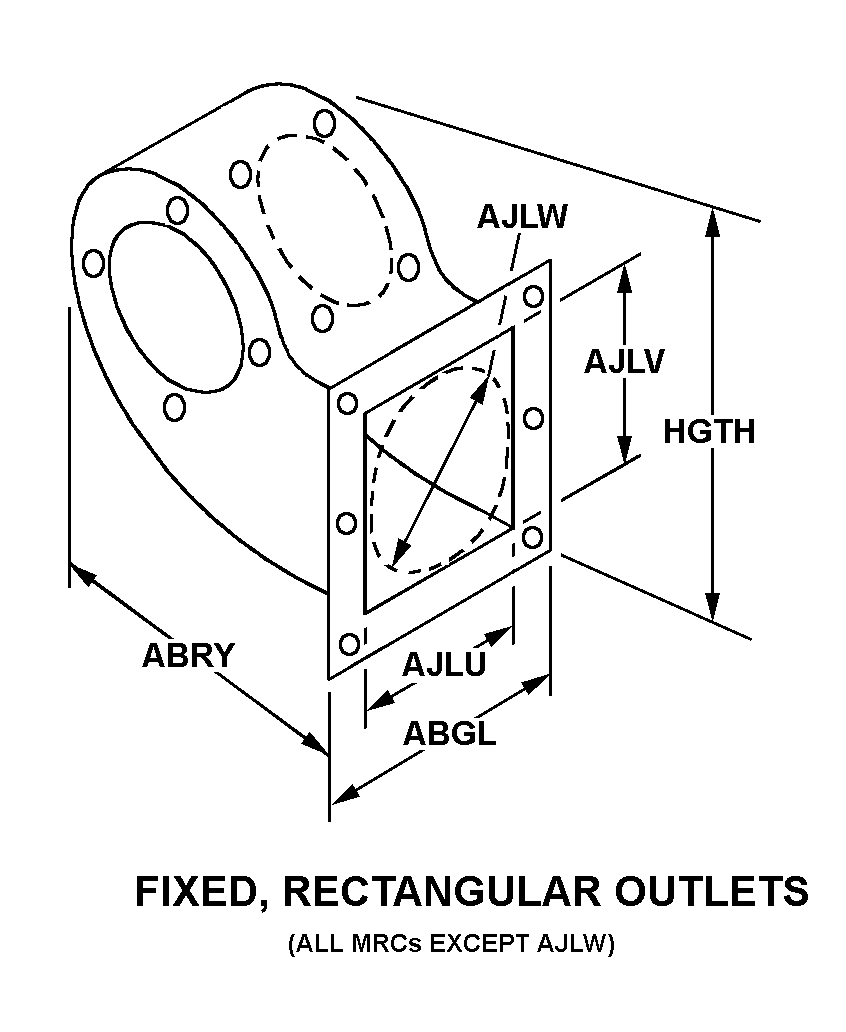

FIXED, RECTANGULAR OUTLETS
Cross Reference | NSN 4140-01-328-3958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 201-14-4005-5 | 25795 | W.W. GRAINGER, INC.DBA GRAINGER |
Technical Data | NSN 4140-01-328-3958
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | FIXED, RECTANGULAR OUTLETS |
| WIDTH | 22.000 INCHES NOMINAL |
| OUTLET INSIDE WIDTH | 7.125 INCHES NOMINAL |
| HEIGHT | 22.325 INCHES NOMINAL |
