NSN 4140-01-329-1664
Part Details | CENTRIFUGAL FAN HOUSING
4140-01-329-1664 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: P607112, P549009, P54-9009, P526735, P52-6735, 4140-01-329-1664, 01-329-1664, 4140013291664, 013291664
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | NOV 11, 1990 | 01-329-1664 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |

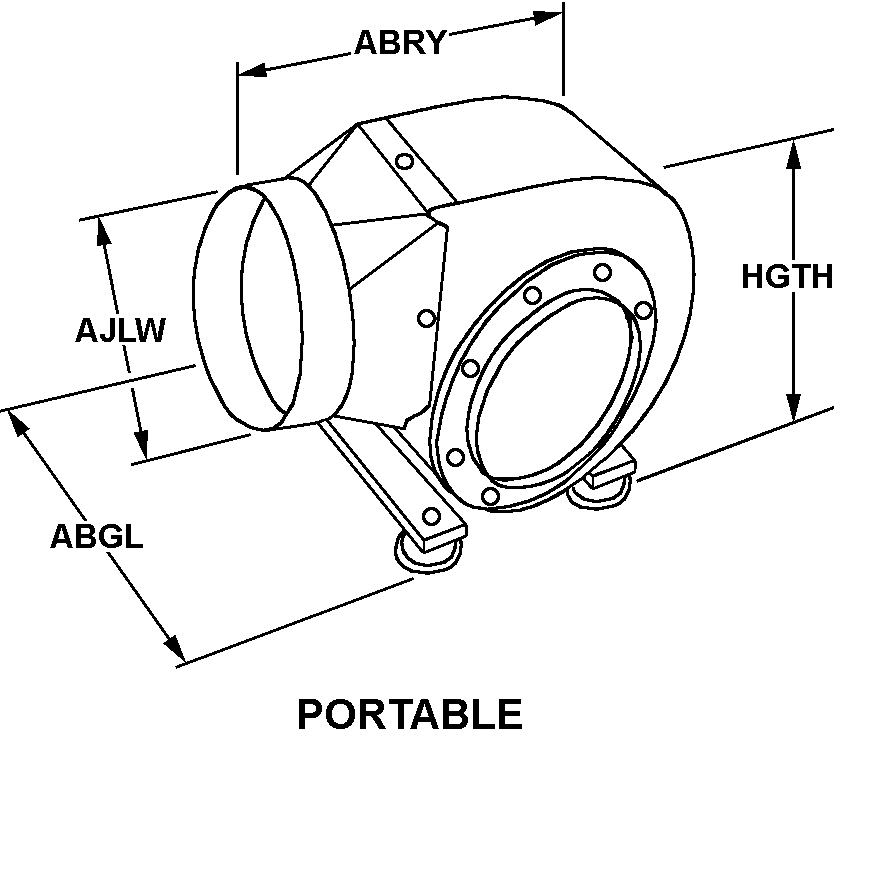

REFERENCE DRAWINGS & PICTURES
PORTABLE
Cross Reference | NSN 4140-01-329-1664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P607112 | 18265 | DONALDSON COMPANY, INC. |
| P54-9009 | 18265 | DONALDSON COMPANY, INC. |
| P52-6735 | 18265 | DONALDSON COMPANY, INC. |
Technical Data | NSN 4140-01-329-1664
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | PORTABLE |
| WIDTH | 17.000 INCHES NOMINAL |
| LENGTH | 15.280 INCHES NOMINAL |
| HEIGHT | 9.150 INCHES NOMINAL |
| PRIME MOVER FOR WHICH DESIGNED | DIESEL ENGINE AND GASOLINE ENGINE |
| END ITEM IDENTIFICATION | 2320-01-272-5029,LINE HAUL TRK |
