NSN 4140-01-338-8787
Part Details | CENTRIFUGAL FAN HOUSING
4140-01-338-8787 The outer casing of a centrifugal fan designed to inclose an impeller. It is usually of one piece construction containing inlet(s) and outlets.
Alternate Parts: 17P2N40821, 17P2N4082-1, 4140-01-338-8787, 01-338-8787, 4140013388787, 013388787
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | MAY 12, 1991 | 01-338-8787 | 61534 ( HOUSING, CENTRIFUGAL FAN ) |

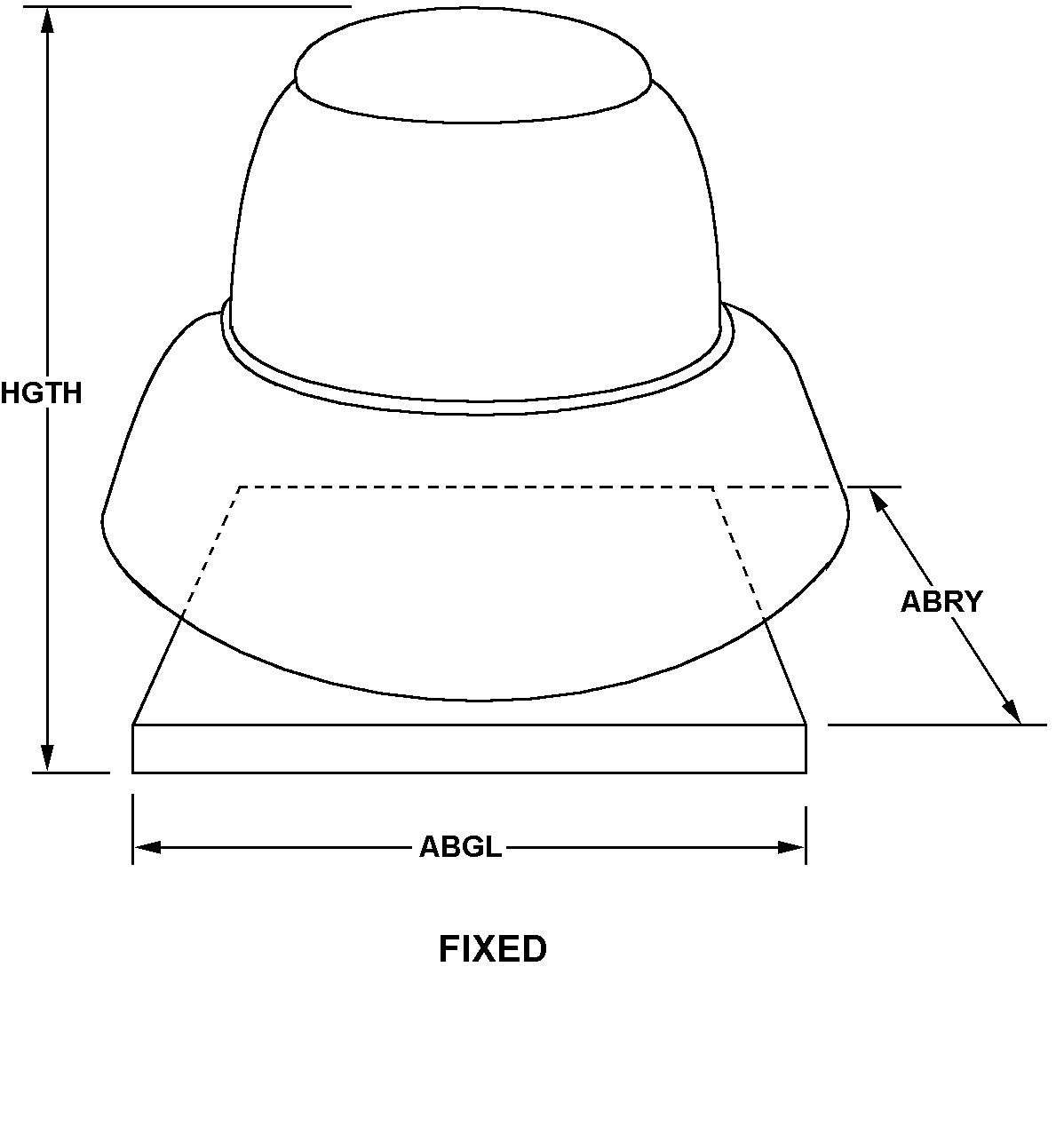

REFERENCE DRAWINGS & PICTURES
FIXED
Cross Reference | NSN 4140-01-338-8787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17P2N4082-1 | 88277 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 4140-01-338-8787
| Characteristic | Specifications |
|---|---|
| HOUSING STYLE | FIXED |
| WIDTH | 11.500 INCHES NOMINAL |
| LENGTH | 23.500 INCHES NOMINAL |
| HEIGHT | 10.620 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL FOAM,CONSTRUCTION RIGID,FACED WITH GLASS CLOTH; MATL SPEC DMS 2264 TYPE I MOLDED OR CAST |
| END ITEM IDENTIFICATION | C-17A;17A001-076 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PLENUM,AIR CONDITIONING,RECIRC,CTR FUSLG |
