NSN 4140-01-354-1228
Part Details | CIRCULATING FAN
4140-01-354-1228 A nonpositive displacement mechanical device having an axial fan impeller with or without a protective enclosure. It is designed to circulate air under free-airflow conditions, and may be equipped with a baffle(s) to deflect the air radially. It may be suspended from the ceiling, attached to the wall, or stand on a horizontal surface.
Alternate Parts: 48CBS, PB548B, PB548-B, 4140-01-354-1228, 01-354-1228, 4140013541228, 013541228
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | FEB 25, 1992 | 01-354-1228 | 30260 ( FAN, CIRCULATING ) |
REFERENCE DRAWINGS & PICTURES

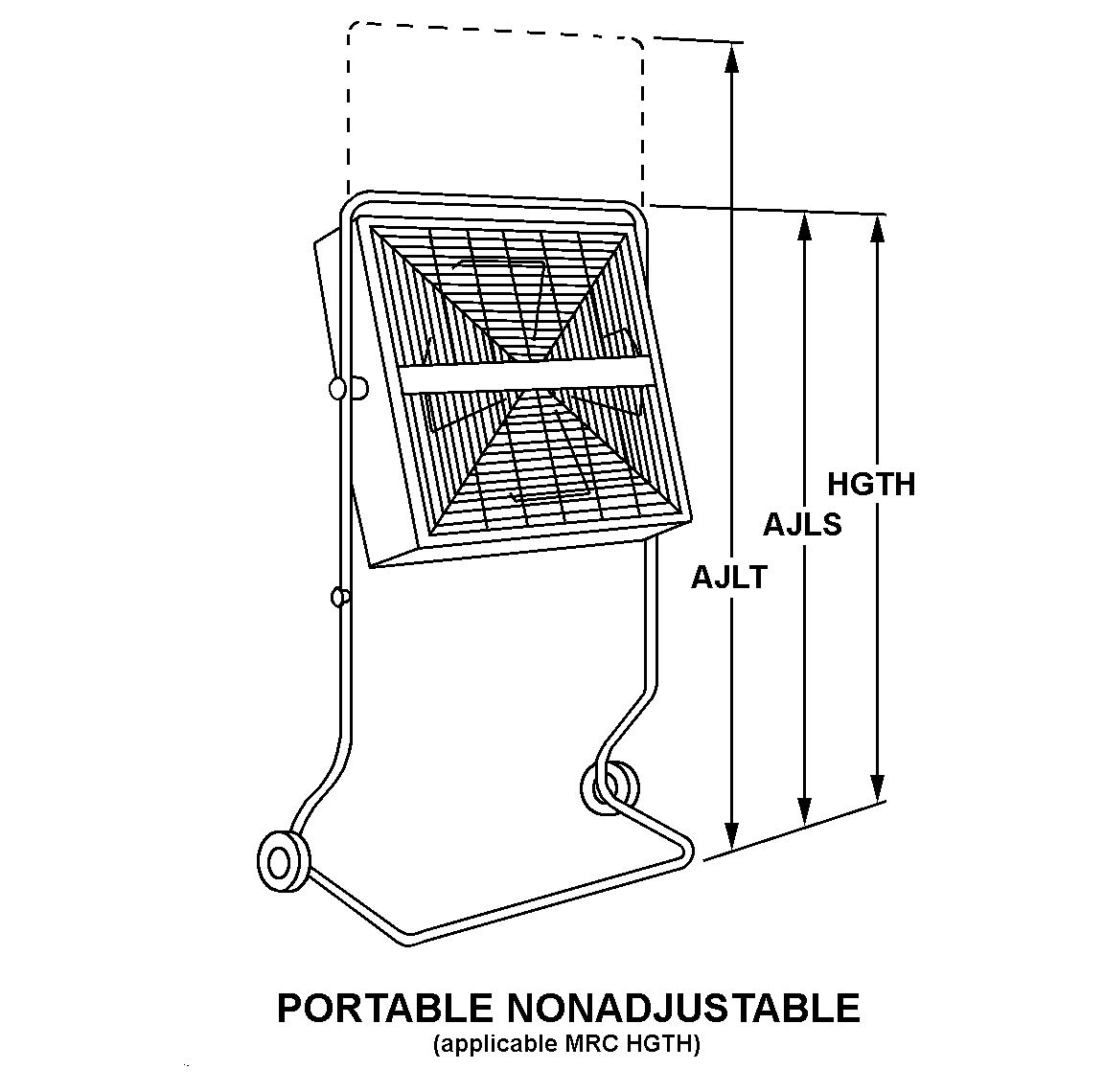

PORTABLE NONADJUSTABLE
Cross Reference | NSN 4140-01-354-1228
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 48CBS | 55022 | PATTON ELECTRIC CO INC |
| PB548-B | 55022 | PATTON ELECTRIC CO INC |
Technical Data | NSN 4140-01-354-1228
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A PORTABLE NONADJUSTABLE |
| DRIVE TYPE | BELT |
| SHAFT BEARING TYPE | BALL |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | GUARDED |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| PRIME MOVER POWER RATING | 1.000 HORSEPOWER |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 380.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 22700.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| FLOW DIRECTION | OUTWARD |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 RACK |
