NSN 4140-01-381-7285
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-381-7285 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: GI9211, GI-9211, 4140-01-381-7285, 01-381-7285, 4140013817285, 013817285
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | OCT 21, 1993 | 01-381-7285 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

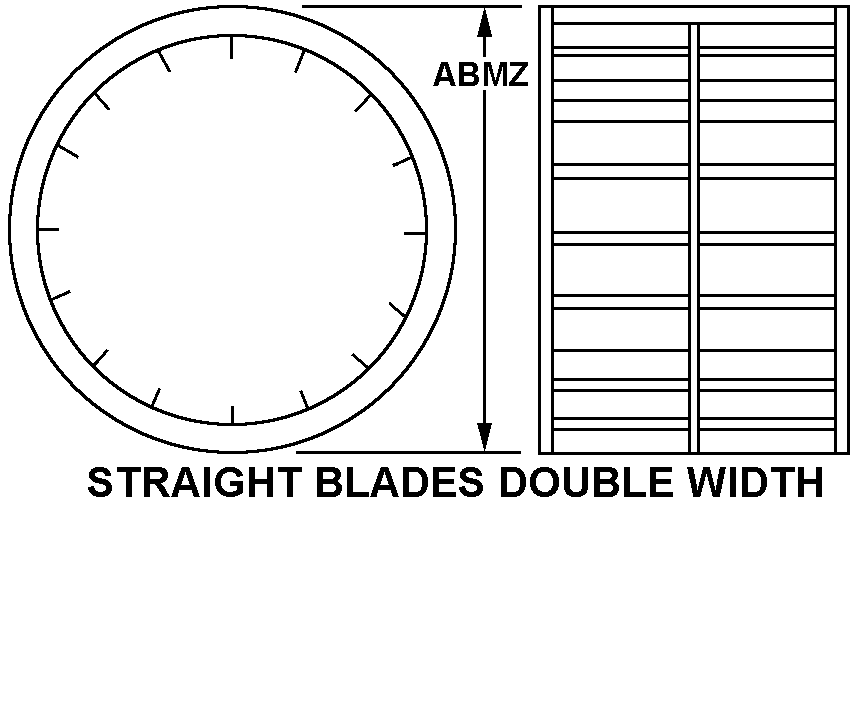

STRAIGHT BLADES DOUBLE WIDTH
Cross Reference | NSN 4140-01-381-7285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GI-9211 | 63995 | MI-T-M CORPORATION |
Technical Data | NSN 4140-01-381-7285
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT BLADES DOUBLE WIDTH |
| WIDTH | 6.854 INCHES NOMINAL |
| BLADE QUANTITY | 36 |
| ROTATION DIRECTION FOR WHICH DESIGNED | COUNTERCLOCKWISE |
