NSN 4140-01-387-9438
Part Details | CENTRIFUGAL FAN IMPELLER
4140-01-387-9438 An item with blades, vanes, or paddles equally spaced radially or horizontally around the periphery of a hub, rotor, or wheel. It is the rotating part of a centrifugal fan, electric motor, generator and the like which creates a flow of air or gas perpendicular to the axis of rotation.
Alternate Parts: Q631400, Q631-400, 21854001, 21854-001, 11024978, 4140-01-387-9438, 01-387-9438, 4140013879438, 013879438
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | MAR 16, 1994 | 01-387-9438 | 10088 ( IMPELLER, FAN, CENTRIFUGAL ) |
REFERENCE DRAWINGS & PICTURES

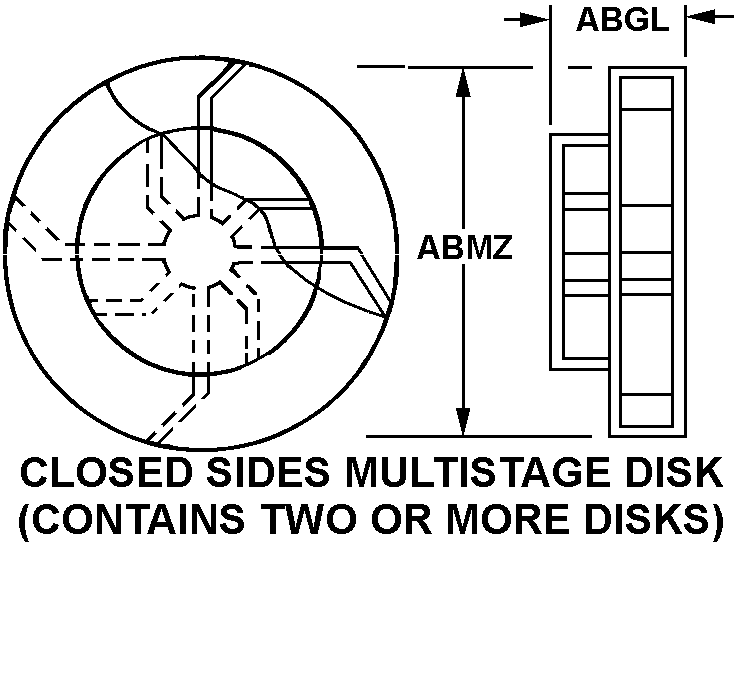

CLOSED SIDES MULTISTAGE DISK
Cross Reference | NSN 4140-01-387-9438
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| Q631-400 | 95933 | REVCOR INC |
| 21854-001 | 50340 | SCOTT AND FETZER CO THEWAYNE HOME EQUIPMENT DIV |
| 11024978 | 59678 | US ARMY ARMAMENT RESEARCHDEVELOPEMENT ENGINEERING |
Technical Data | NSN 4140-01-387-9438
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED SIDES MULTISTAGE DISK |
| WIDTH | 3.970 INCHES MINIMUM AND 4.030 INCHES MAXIMUM |
| DIAMETER | 6.200 INCHES MINIMUM AND 6.260 INCHES MAXIMUM |
| BLADE QUANTITY | 4 |
| END ITEM IDENTIFICATION | HOTWATER JET HIGH PRESSURE STEAM CLEANER |
