NSN 4210-01-388-9047
Part Details | FIRE FIGHTING TRUCK
4210-01-388-9047 Fire fighting equipment mounted on a self-propelled chassis, and equipped to employ various types of fire extinguishing agents to combat and/or extinguish fires.
Alternate Parts: AS32P21, A/S32P-21, P21, AA58005, A-A-58005, 4210-01-388-9047, 01-388-9047, 4210013889047, 013889047
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 42 | APR 12, 1994 | 01-388-9047 | 03254 ( TRUCK, FIRE FIGHTING ) |
REFERENCE DRAWINGS & PICTURES

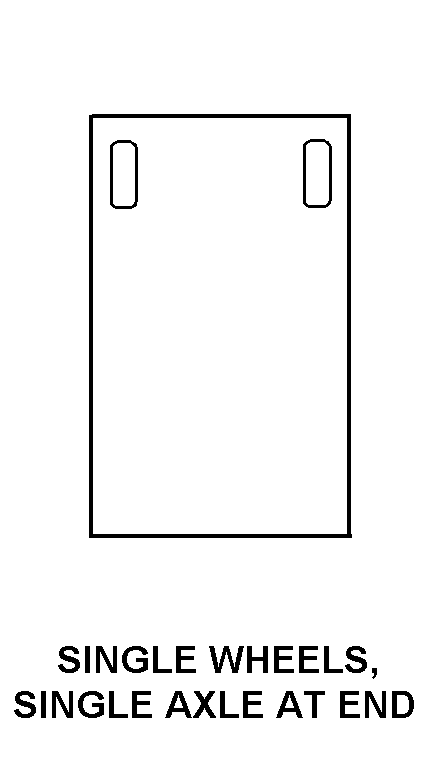

SINGLE WHEELS, SINGLE AXLE AT END
Cross Reference | NSN 4210-01-388-9047
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A/S32P-21 | 59556 | KOVATCH CORP. |
| P21 | 0H4A9 | KOVATCH MOBILE EQUIPMENT CORP.DBA KME FIRE APPARATUS |
| A-A-58005 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Technical Data | NSN 4210-01-388-9047
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | PUMPER AND RESCUE |
| EXTINGUISHING AGENT FOR WHICH DESIGNED | WATER |
| WATER TANK QUANTITY | 1 |
| AERIAL LADDER | INCLUDED |
| WHEEL ARRANGEMENT STYLE | 4 SINGLE WHEELS, SINGLE AXLE AT END |
| FRONT WHEEL DRIVE FEATURE | NOT INCLUDED |
| WHEELBASE SIZE | 248.000 INCHES |
| PRIME MOVER TYPE | DIESEL ENGINE |
| MULTIFUEL USAGE FEATURE | NOT PROVIDED |
| PRIME MOVER QUANTITY | 1 |
| CYLINDER QUANTITY | 8 |
| BRAKE POWER RATING | 450.0000 HORSEPOWER |
| BRAKE POWER RATING SPECIFIED RPM | 2100 |
| ENGINE MANUFACTURER NAME | DETROIT DIESEL |
| ENGINE MODEL NUMBER | 8V92TA |
| TRANSMISSION TYPE | AUTOMATIC |
| SPEED RANGE QUANTITY | 1 |
| FORWARD SPEED QUANTITY PER RANGE | 4 |
| REVERSE SPEED QUANTITY | 1 |
| OVERDRIVE | NOT INCLUDED |
| WINCH | NOT INCLUDED |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| SPECIAL FEATURES | GROVER AIR HORN CODE 3-NO3692 V-CON SIREN;100 WATT SIREN SPEAKER;WHELEN21" STROBE LIGHTBARS;HALE OSMG 1250 SINGLE STAGE PUMP;HOSE CHUTE ACCESS DOORS;"A" FRAME LADDER ON REAR OF BODY;TWOHANNAY ELECTRIC CORD REELS W/200FT OF 12/3 CABLE, TWO 500 WATT QUARTZ LIGHTSMOUNTED ON PLATFORM |
| SUPPLEMENTARY FEATURES | 102 FT AERIALCAT PLATFORM-KME LOWPROFILE AERIAL CUSTOM CHASSIS;SEATING FOR 6 FIREFIGHTERS; 5 SCBA SEATS; AIR CONDITIONED CAB;21,480 LB CAP FRONT AXLE, 52,000 LB CAP REAR TANDEM AXLE;ALLISON HT-740P AUTOMATIC TRANSMISSION W/OUT-PUT RETARDER;100GAL FUEL TANK;HALETPM RELIEF VALVE SYSTEM;ALUMINUM HOSE BED-CAP 1000' OF 5" HOSE;6000 WATT T&JDIESEL GENERATOR;CHALMERS RUBBER BLOCKREAR SUSPENSION;AUTOMATIC BRAKE SLACK ADJUSTER;SEVEN PLACE BREAKER PANEL |
