NSN 4310-00-467-9940
Part Details | COMPRESSOR PISTON
4310-00-467-9940 A cylindrical piece which moves or reciprocates in a cylinder to compress air or gas from an initial intake pressure to a higher discharge pressure. May include integral connecting rod.
Alternate Parts: 20100G, 20-100G, S150415GREVAPC100, S150-415GREVAPC100, 3315345REVAPC100, 3315345REVAPC100, 4310-00-467-9940, 00-467-9940, 4310004679940, 004679940
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JAN 01, 1961 | 00-467-9940 | 22220 ( PISTON, COMPRESSOR ) |
REFERENCE DRAWINGS & PICTURES

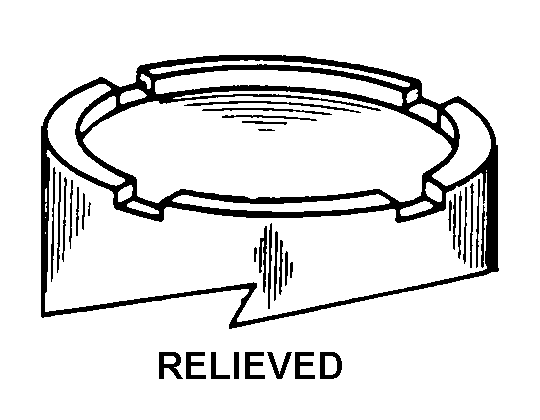

RELIEVED
Cross Reference | NSN 4310-00-467-9940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20-100G | 27235 | HARDIE-TYNES CO., INC. |
| S150-415GREVAPC100 | 27235 | HARDIE-TYNES CO., INC. |
| 3315345REVAPC100 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 3315345REVAPC100 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4310-00-467-9940
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON CAST |
| DIAMETER | 6.490 INCHES NOMINAL |
| OVERALL HEIGHT | 12.750 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |
| HEAD STYLE | RELIEVED |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 4 |
| RING GROOVE POSITION | NO.1,NO.2,NO.3,AND NO.4 POSITIONS |
| RING GROOVE WIDTH | 0.344 INCHES NOMINAL |
| RING GROOVE DIAMETER | 5.922 INCHES NOMINAL |
| OIL PASSAGE TYPE | SLOT |
| OIL GROOVE | NOT INCLUDED |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 0.109 INCHES NOMINAL |
| RETAINING RING GROOVE | NOT INCLUDED |
| PIN | NOT INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
| INTEGRAL CONNECTING ROD | NOT INCLUDED |
