NSN 4310-00-494-1462
Part Details | PISTON PIN
4310-00-494-1462 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: PIN1100, PIN1100, PIN1100, 4310-00-494-1462, 00-494-1462, 4310004941462, 004941462
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | MAR 18, 1972 | 00-494-1462 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ENDS W/RADIAL SLOT

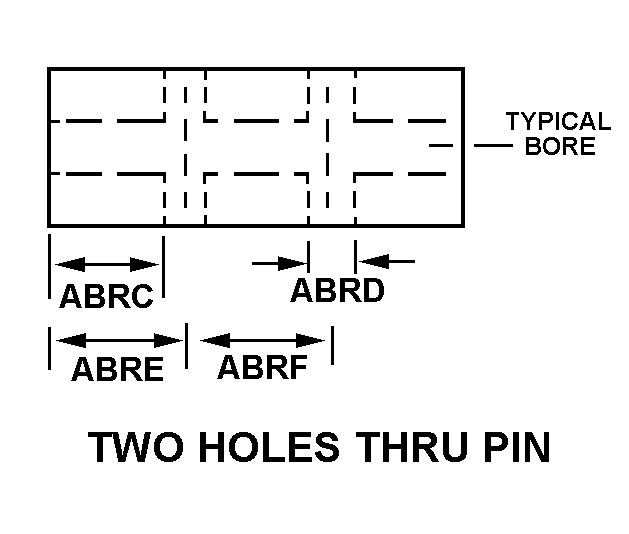

TWO HOLES THRU PIN
STRAIGHT-THRU BORE
Cross Reference | NSN 4310-00-494-1462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PIN1100 | 1T943 | ACME PRODUCTS & ENGINEERING INC |
| PIN1100 | 0AT62 | DRESSER-RAND COMPANYDBA RECIPROCATING PRODUCTS DIV |
| PIN1100 | 93236 | DRESSER-RAND COWORTHINGTON COMPRESSOR OPN |
Technical Data | NSN 4310-00-494-1462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | C PLAIN ENDS W/RADIAL SLOT |
| GROOVE DEPTH | 0.0800 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.75000 INCHES NOMINAL |
| BODY LENGTH | 3.8120 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.080 INCHES NOMINAL |
| DISTANCE FROM END TO SLOT CENTER | 1.875 INCHES NOMINAL |
| BORE STYLE | STRAIGHT-THRU BORE |
| BORE DIAMETER | 1.3060 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | TWO HOLES THRU PIN |
| FIRST HOLE DIAMETER | 0.250 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.620 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.5800 INCHES NOMINAL |
