NSN 4310-00-535-8395
Part Details | VALVE SPRING RETAINER LOCK
4310-00-535-8395 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.
Alternate Parts: 224611, 22461-1, 4310-00-535-8395, 00-535-8395, 4310005358395, 005358395
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JAN 01, 1961 | 00-535-8395 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
REFERENCE DRAWINGS & PICTURES

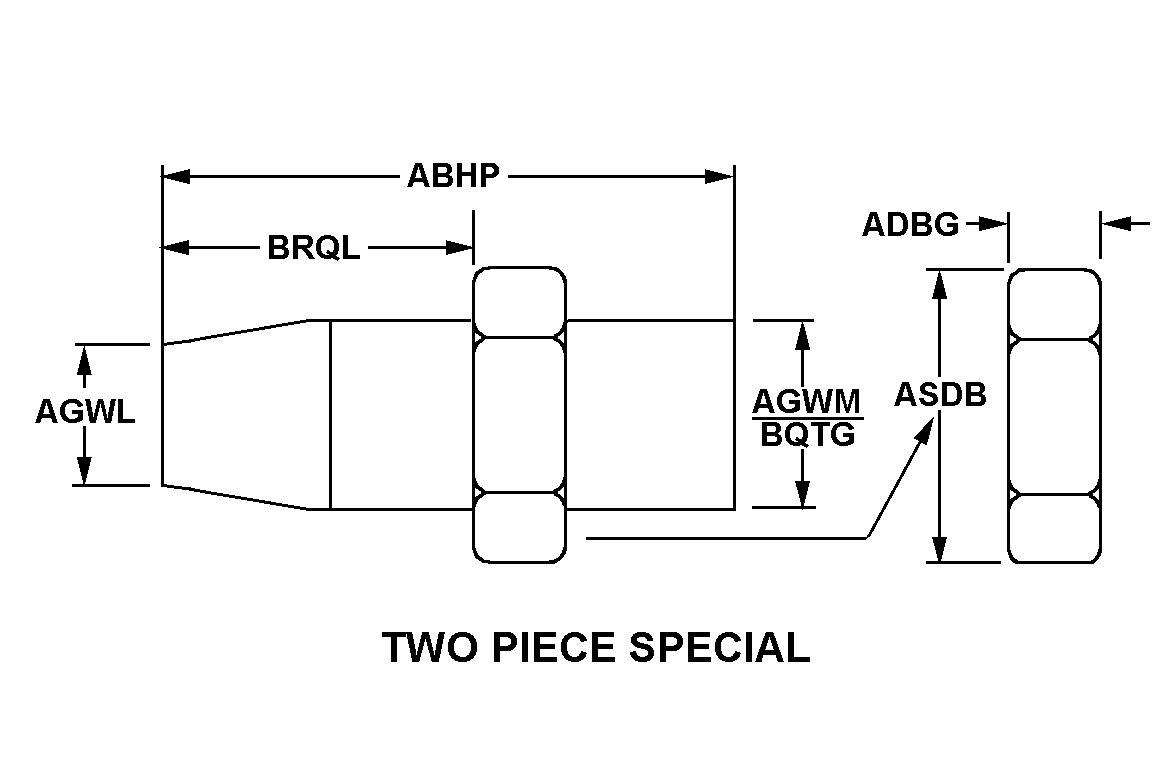

TWO PIECE SPECIAL
Cross Reference | NSN 4310-00-535-8395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22461-1 | 26505 | GROVE VALVE OPERATIONS |
Technical Data | NSN 4310-00-535-8395
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | TWO PIECE SPECIAL |
| SMALLEST OUTSIDE DIAMETER | 0.312 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 0.531 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16-20 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD DIRECTION | RIGHT-HAND |
| END ITEM IDENTIFICATION | MISSILE FSC 4935 |
