NSN 4310-00-589-1483
Part Details | PISTON RING
4310-00-589-1483 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.
Alternate Parts: GI 18107, 5205228000, 5205-228000, 520522800, 5205-22800, 205228, 205-228, 4310-00-589-1483, 00-589-1483, 4310005891483, 005891483
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JAN 01, 1963 | 00-589-1483 | 11459 ( RING, PISTON ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT FACE, BOTTOM RELIEF
CONCENTRIC

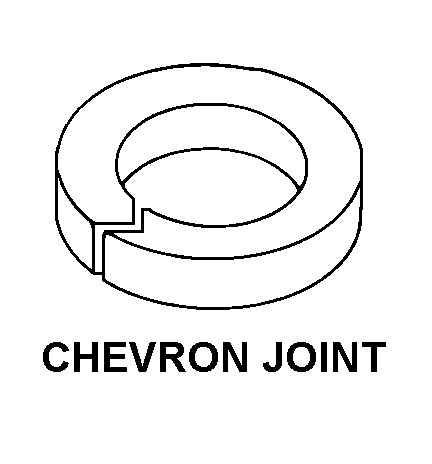

CHEVRON JOINT
Cross Reference | NSN 4310-00-589-1483
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GI 18107 | 60251 | DOVER RESOURCES INCDBA C. LEE COOK DIV |
| 5205-228000 | 81833 | TRANSDIGM, INC.DBA AEROCONTROLEX |
| 5205-22800 | 81833 | TRANSDIGM, INC.DBA AEROCONTROLEX |
| 205-228 | 81833 | TRANSDIGM, INC.DBA AEROCONTROLEX |
Technical Data | NSN 4310-00-589-1483
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | STRAIGHT FACE, BOTTOM RELIEF |
| JOINT STYLE | CHEVRON JOINT |
| RING STYLE | CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1094 INCHES NOMINAL |
| OVERALL WIDTH | 0.1562 INCHES NOMINAL |
| STANDARD BORE DIAMETER | 2.000 INCHES |
