NSN 4320-00-350-4752
Part Details | PUMP PISTON
4320-00-350-4752
Alternate Parts: 215748, 5245588, 4320-00-350-4752, 00-350-4752, 4320003504752, 003504752
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JAN 01, 1963 | 00-350-4752 | 60806 ( PISTON, PUMP ) |
REFERENCE DRAWINGS & PICTURES

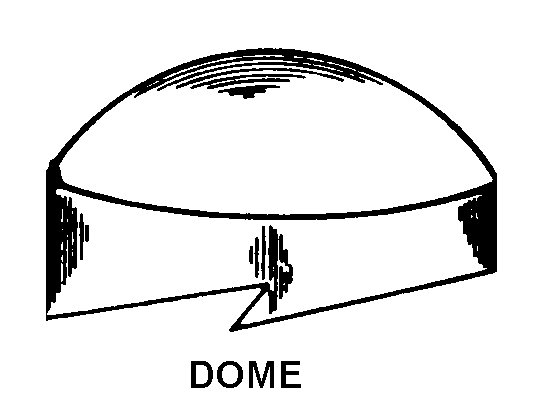

DOME
Cross Reference | NSN 4320-00-350-4752
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 215748 | 44674 | OILGEAR COMPANY, THEDBA OILGEAR |
| 5245588 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4320-00-350-4752
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| DIAMETER | 0.096 INCHES NOMINAL |
| OVERALL HEIGHT | 0.437 INCHES NOMINAL |
| HEAD STYLE | DOME |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 13 |
| RING GROOVE WIDTH | 0.016 INCHES NOMINAL |
| OIL GROOVE | NOT INCLUDED |
| INTEGRAL CONNECTING ROD | NOT INCLUDED |
