NSN 4330-01-154-2442
Part Details | FLUID FILTER
4330-01-154-2442 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.
Alternate Parts: 81124214, 811242-14, 4330-01-154-2442, 01-154-2442, 4330011542442, 011542442
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | MAY 23, 1983 | 01-154-2442 | 32622 ( FILTER, FLUID ) |
REFERENCE DRAWINGS & PICTURES

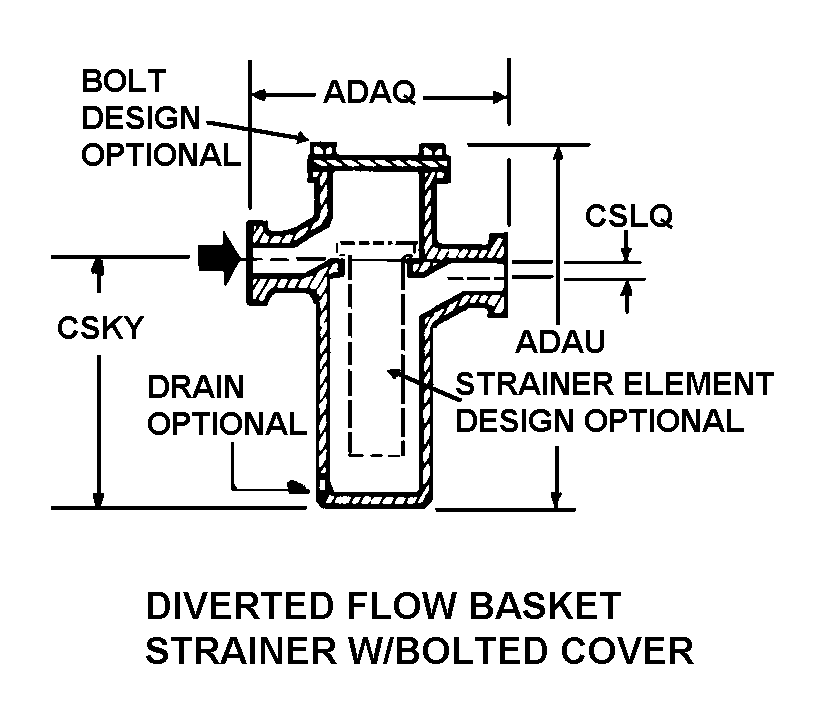

DIVERTED FLOW BASKET STRAINER W/BOLTED COVER
Cross Reference | NSN 4330-01-154-2442
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 811242-14 | 92863 | MARVEL ENGINEERING COMPANY INC |
Technical Data | NSN 4330-01-154-2442
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DIVERTED FLOW BASKET STRAINER W/BOLTED COVER |
| DESIGN TYPE | NONREUSABLE |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING HOLE QUANTITY | 8 |
| FILTERING SYSTEM FOR WHICH DESIGNED | BY-PASS FLOW |
| FEATURES PROVIDED | BY-PASS VALVE AND DIFFERENTIAL PRESSURE INDICATOR |
