NSN 4330-01-154-9764
Part Details | FLUID FILTER COVER
4330-01-154-9764 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.
Alternate Parts: N5786, N5274PIECE30, N5274, H16132, 4330-01-154-9764, 01-154-9764, 4330011549764, 011549764
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | JUN 03, 1983 | 01-154-9764 | 22569 ( COVER, FLUID FILTER ) |
REFERENCE DRAWINGS & PICTURES
CIRCULAR RECESS

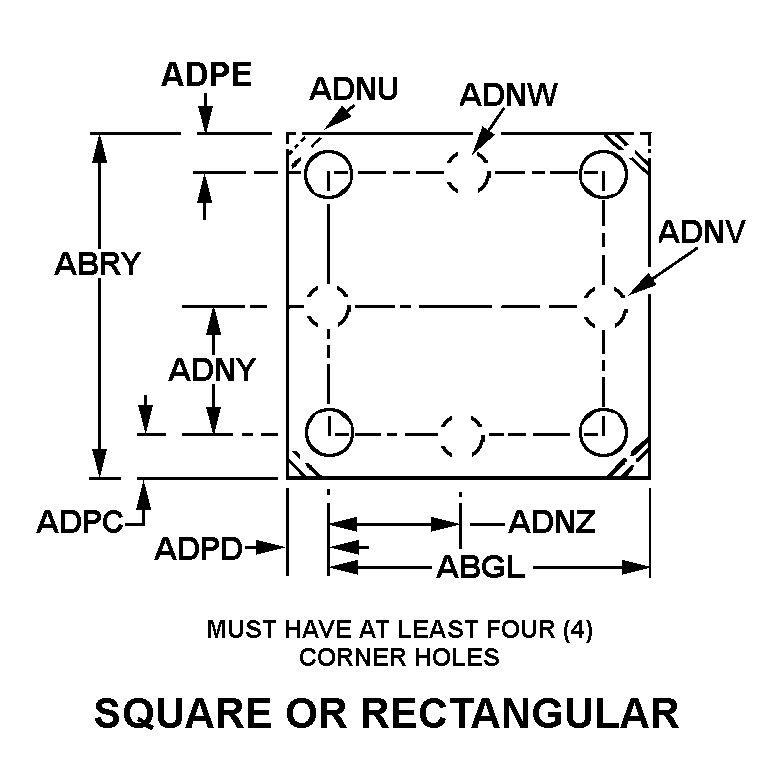

SQUARE OR RECTANGULAR
Cross Reference | NSN 4330-01-154-9764
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N5786 | 09032 | TATE ANDALE, INC. |
| N5274PIECE30 | 09032 | TATE ANDALE, INC. |
| N5274 | 09032 | TATE ANDALE, INC. |
| H16132 | 09032 | TATE ANDALE, INC. |
Technical Data | NSN 4330-01-154-9764
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 905 |
| ATTACHMENT METHOD | BOLTED |
| PERIPHERAL SHAPE STYLE | SQUARE OR RECTANGULAR |
| HOLE QUANTITY ALONG LENGTH | 2 |
| HOLE QUANTITY ALONG WIDTH | 2 |
| CROSS-SECTIONAL SHAPE STYLE | 6 CIRCULAR RECESS |
| MOUNTING HOLE TYPE AND QUANTITY | 4 PLAIN |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
| SPECIAL FEATURES | ANDALE CO. DUPLEX STRAINER MODEL NO. 1033BM 1-1/2 IN. |
