NSN 4330-01-343-8537
Part Details | FLUID FILTER ASSEMBLY
4330-01-343-8537 Two or more FILTER, FLUID on a common mounting or mounted on each other. They may be separable and operate in series, parallel, or individually.
Alternate Parts: 911170 ASSEMBLY 1, 911-170 ASSEMBLY 1, 911170, 911-170, 431385, 426671, 422673, 911170 ASSEMBLY 2, 911-170 ASSEMBLY 2, M244022NS, M24402/2NS, MILF24402, MIL-F-24402, WE244022NS, WE-24402-2NS, 4330-01-343-8537, 01-343-8537, 4330013438537, 013438537
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | AUG 17, 1991 | 01-343-8537 | 32623 ( FILTER ASSEMBLY, FLUID ) |
REFERENCE DRAWINGS & PICTURES
ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES

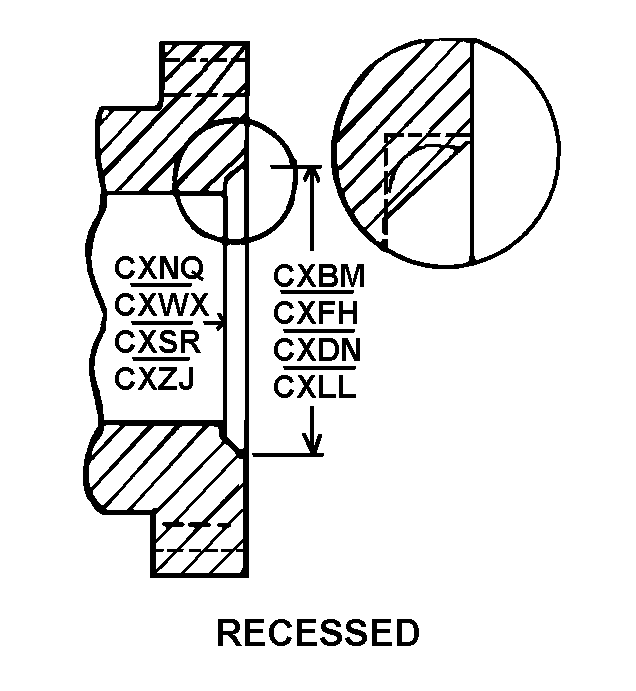

RECESSED
RECESSED
RECESSED
RECESSED
Cross Reference | NSN 4330-01-343-8537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 911-170 ASSEMBLY 1 | 14818 | DONALDSON COMPANY, INC. |
| 911-170 | 14818 | DONALDSON COMPANY, INC. |
| 431385 | 13520 | DONALDSON COMPANY, INC. |
| 426671 | 13520 | DONALDSON COMPANY, INC. |
| 422673 | 13520 | DONALDSON COMPANY, INC. |
| 911-170 ASSEMBLY 2 | 14818 | DONALDSON COMPANY, INC. |
| M24402/2NS | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MIL-F-24402 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| WE-24402-2NS | 60047 | PALL AEROPOWER CORPSUB OF PALL CORP |
Technical Data | NSN 4330-01-343-8537
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | REUSABLE |
| UNIT QUANTITY | 2 |
| FILTERING ELEMENT QUANTITY | 2 |
| MEDIA FOR WHICH DESIGNED | Y ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 20.0 DEG CELSIUS MINIMUM AND 60.0 DEG CELSIUS MAXIMUM |
| DROP PRESSURE | 35.0 POUNDS PER SQUARE INCH |
| FIRST INTAKE FLANGE SHAPE STYLE | ROUND W/THREADED BOLT HOLES |
| FIRST INTAKE FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| FIRST INTAKE FLANGE FACE STYLE | RECESSED |
| FIRST INTAKE FLANGE RECESS DIAMETER | 2.125 INCHES NOMINAL |
| FIRST INTAKE FLANGE RECESS DEPTH | 0.312 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| FILTERING SYSTEM FOR WHICH DESIGNED | H$J |
| SPECIAL FEATURES | NO BYPASS RELIEF; STD RIGHT HAND OUTLET; BOTH PORTS 8 HOLE FLANGE 1/2-20UNF-3B THD 3/4 DP 90.0DEG CSK; O/A 21.500IN.H,O/A 18.000IN.W,O/A 10.060IN.D |
| SUPPLEMENTARY FEATURES | 4HOLES 1/2-20UNF-3B THD 0.800 DEPTH LOCATED ON BOTTOM OF HEAD BETWEEN ELEMENT BOWLS |
