NSN 4510-01-197-5579
Part Details | WATER MIXING VALVE
4510-01-197-5579 A valve having one discharge connection and separate hot and cold inlet connections in one body. It is designed to mix water to a desired temperature.
Alternate Parts: 12CMBT07501A4, 1/2CMBT07501-A4, 13226E1759, 4510-01-197-5579, 01-197-5579, 4510011975579, 011975579
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | DEC 22, 1984 | 01-197-5579 | 30193 ( VALVE, WATER MIXING ) |
REFERENCE DRAWINGS & PICTURES

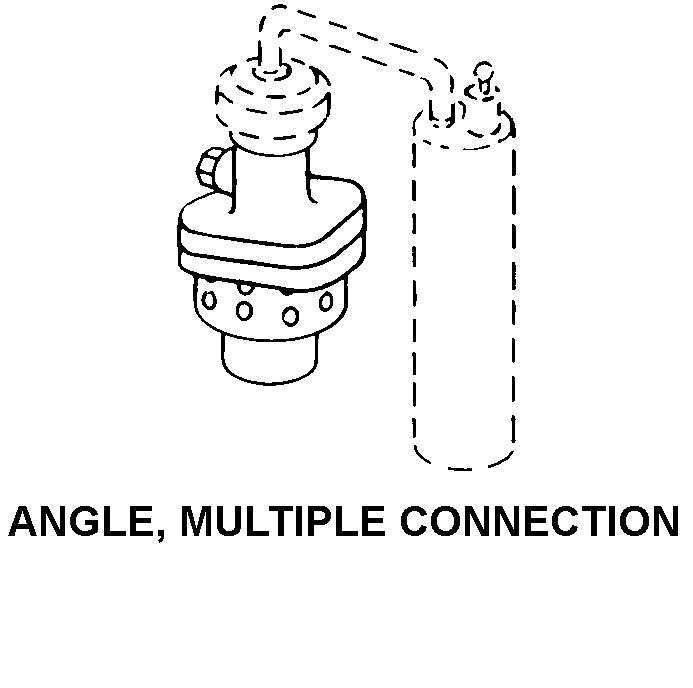

ANGLE, MULTIPLE CONNECTION
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
Cross Reference | NSN 4510-01-197-5579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1/2CMBT07501-A4 | 94607 | AMOT CONTROLS CORPORATIONDBA ROPER INDUSTRIES |
| 13226E1759 | 97403 | CECOM LR CENTER |
Technical Data | NSN 4510-01-197-5579
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ANGLE, MULTIPLE CONNECTION |
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | CORE |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 0.5 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER, FRESH |
| VALVE DISCHARGE FLOW RATE | 0.67 GALLONS PER MINUTE |
| USAGE DESIGN | CONCEALED PIPE |
