NSN 4520-00-712-8513
Part Details | AIR CONDITIONING-HEATING ADAPTER
4520-00-712-8513 A fitting, tubular at one end and other than tubular at the other end. It is used to connect two sections of air conditioning-heating pipe or to connect air conditioning-heating pipe to air conditioning-heating units.
Alternate Parts: 9169657, 9169657, 9169657, 4520-00-712-8513, 00-712-8513, 4520007128513, 007128513
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | JAN 01, 1963 | 00-712-8513 | 33667 ( ADAPTER, AIR CONDITIONING-HEATING ) |
REFERENCE DRAWINGS & PICTURES

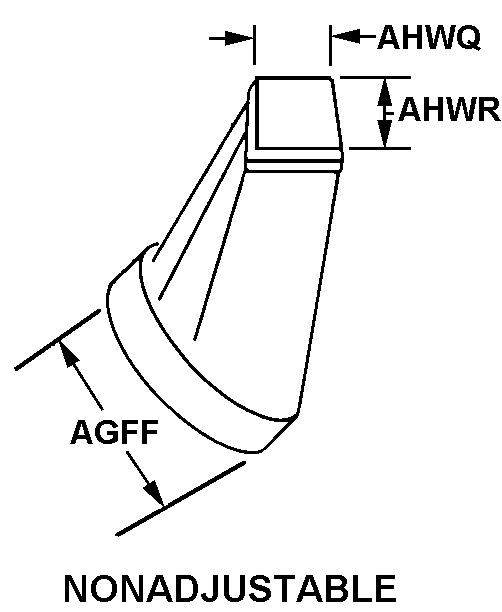

NONADJUSTABLE
Cross Reference | NSN 4520-00-712-8513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9169657 | 55097 | SHILOH INDUSTRIES, INC. |
| 9169657 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 9169657 | 26772 | WEGO PRECISION MACHINE, INC. |
Technical Data | NSN 4520-00-712-8513
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.5625 INCHES NOMINAL |
| OVERALL DIAMETER | 2.218 INCHES MINIMUM AND 2.281 INCHES MAXIMUM |
| MATERIAL | RUBBER |
| CONSTRUCTION TYPE | SINGLE |
| ANGLE IN DEG | 42.0 |
| ADJUSTABILITY FEATURE | NOT INCLUDED |
| STYLE DESIGNATOR | NONADJUSTABLE |
| SPECIAL FEATURES | ADAPTER IS STRAIGHT |
