NSN 4520-01-031-3776
Part Details | AIR CONDITIONING-HEATING TEE
4520-01-031-3776 A fitting having a branch or branches which are fixed at 90 degrees (1.5708 radians) to the run, It may be reducing, straight or conical type; and is used as a junction at the intersection of air conditioning-heating flue pipes or fittings.
Alternate Parts: T1R8X6X6, T-1R8X6X6, 4520-01-031-3776, 01-031-3776, 4520010313776, 010313776
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | NOV 22, 1976 | 01-031-3776 | 15640 ( TEE, AIR CONDITIONING-HEATING ) |
REFERENCE DRAWINGS & PICTURES

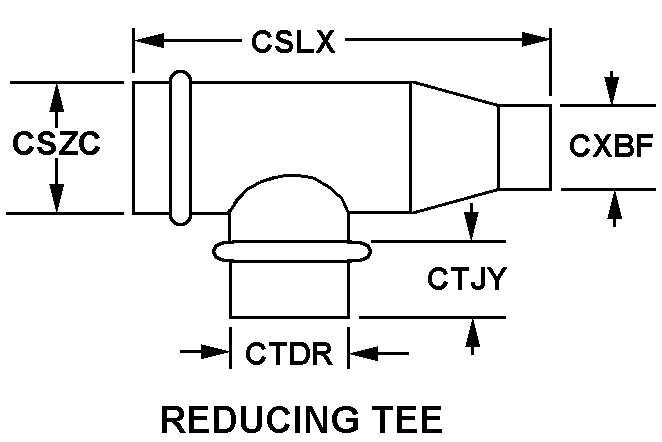

REDUCING TEE
Cross Reference | NSN 4520-01-031-3776
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T-1R8X6X6 | 09098 | UNITED MCGILL CORP |
Technical Data | NSN 4520-01-031-3776
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SHEET METAL GAGE SIZE | 20 |
| STYLE DESIGNATOR | REDUCING TEE |
| MAIN TRUNK INLET DIAMETER | 8.000 INCHES NOMINAL |
| FIRST BRANCH DIAMETER | 6.000 INCHES NOMINAL |
| ATTACHMENT END LENGTH | 2.000 INCHES NOMINAL |
| MAIN TRUNK REDUCING OUTLET DIAMETER | 6.000 INCHES NOMINAL |
