NSN 4520-01-037-8358
Part Details | AIR CONDITIONING-HEATING LATERAL
4520-01-037-8358 A fitting having a branch or branches which are fixed at various angles other than 90 degrees (1.5708 radians) to the run, permitting lines to be taken off laterally from the main line. These laterals may be reducing type.
Alternate Parts: L112X12X6IN, L-1-12X12X6IN, 4520-01-037-8358, 01-037-8358, 4520010378358, 010378358
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | MAR 25, 1977 | 01-037-8358 | 33668 ( LATERAL, AIR CONDITIONING-HEATING ) |

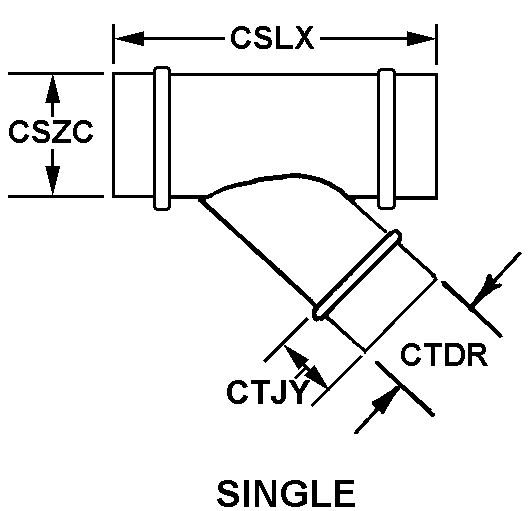

REFERENCE DRAWINGS & PICTURES
SINGLE
Cross Reference | NSN 4520-01-037-8358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L-1-12X12X6IN | 09098 | UNITED MCGILL CORP |
Technical Data | NSN 4520-01-037-8358
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | |
| SHEET METAL GAGE SIZE | 20 |
| STYLE DESIGNATOR | SINGLE |
| MAIN TRUNK INLET DIAMETER | 12.000 INCHES NOMINAL |
| FIRST BRANCH DIAMETER | 6.000 INCHES NOMINAL |
| ATTACHMENT END LENGTH | 2.000 INCHES NOMINAL |
