NSN 4520-01-192-6073
Part Details | AIR CONDITIONING-HEATING ADAPTER
4520-01-192-6073 A fitting, tubular at one end and other than tubular at the other end. It is used to connect two sections of air conditioning-heating pipe or to connect air conditioning-heating pipe to air conditioning-heating units.
Alternate Parts: 512793, 586230, 58623, 512793, 4520-01-192-6073, 01-192-6073, 4520011926073, 011926073
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 45 | OCT 23, 1984 | 01-192-6073 | 33667 ( ADAPTER, AIR CONDITIONING-HEATING ) |

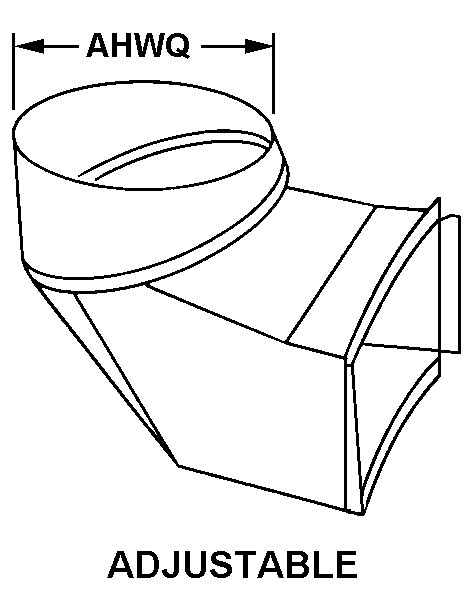

REFERENCE DRAWINGS & PICTURES
NONADJUSTABLE
Cross Reference | NSN 4520-01-192-6073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 512793 | 24234 | AUSTIN-WESTRAN LLC |
| 586230 | 99688 | BERGSTROM INC.DBA BERGSTROM CLIMATE SYSTEMS |
| 58623 | 99688 | BERGSTROM INC.DBA BERGSTROM CLIMATE SYSTEMS |
| 512793 | 99688 | BERGSTROM INC.DBA BERGSTROM CLIMATE SYSTEMS |
Technical Data | NSN 4520-01-192-6073
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| OVERALL DEPTH | 4.400 INCHES NOMINAL |
| CONSTRUCTION TYPE | ANY ACCEPTABLE |
| ANGLE IN DEG | 90.0 |
| ADJUSTABILITY FEATURE | NOT INCLUDED |
| STYLE DESIGNATOR | NONADJUSTABLE |
