NSN 4610-01-596-8677
Part Details | WATER PURIFICATION FILTER
4610-01-596-8677 A device designed to remove particles from water. The removal of particles is accomplished by a FILTER ELEMENT, WATER PURIFICATION constructed so the fluid can flow through it while particles are retained.
Alternate Parts: EBF0103AC09040B, EBF-0103-AC09-040B, 4610-01-596-8677, 01-596-8677, 4610015968677, 015968677
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 46 | MAY 25, 2011 | 01-596-8677 | 50151 ( FILTER, WATER PURIFICATION ) |
REFERENCE DRAWINGS & PICTURES

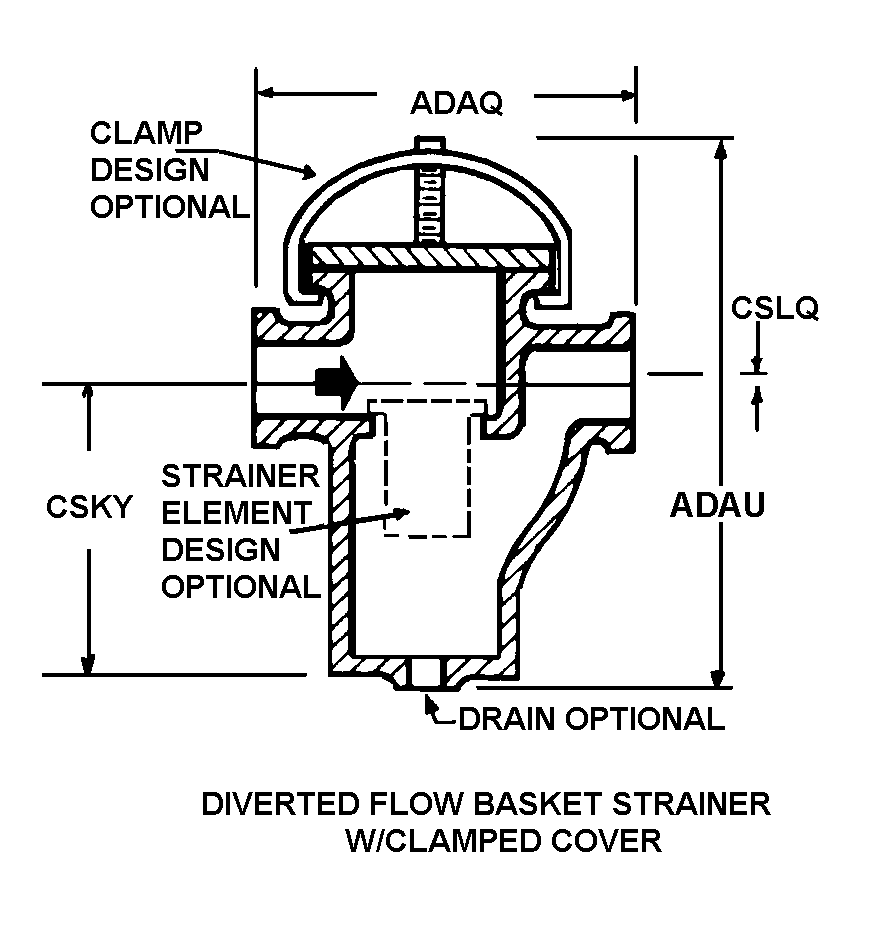

DIVERTED FLOW BASKET STRAINER W/CLAMPED COVER
Cross Reference | NSN 4610-01-596-8677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EBF-0103-AC09-040B | 4QB42 | HAYWARD INDUSTRIAL PRODUCTS, INCDIV EATON FILTRATION, LLC |
Technical Data | NSN 4610-01-596-8677
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DIVERTED FLOW BASKET STRAINER W/CLAMPED COVER |
| BODY HEIGHT | 590.0 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 294.0 INCHES NOMINAL |
| DESIGN TYPE | LIMITED |
| FILTERING ELEMENT QUANTITY | 1 |
| FILTRATION RATING IN MICRONS | 12.0 NOMINAL |
| SPECIAL FEATURES | INSTALLATION HEIGHT 1.968;SPACE HEIGHT 35.43 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | BAG FILTER MINILINE ECOLINE |
