NSN 4720-00-470-6654
Part Details | METALLIC HOSE
4720-00-470-6654 A flexible, tubular item having a metallic tube inner conveying surface. It may have one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, solids, or sound waves. For items with fittings on one or both ends, see HOSE ASSEMBLY, METALLIC. For items used to protect electrical wires or cables, see CONDUIT, RACEWAY (AS MODIFIED).
Alternate Parts: 103257, 4720-00-470-6654, 00-470-6654, 4720004706654, 004706654
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 30, 1970 | 00-470-6654 | 08412 ( HOSE, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
ROUND

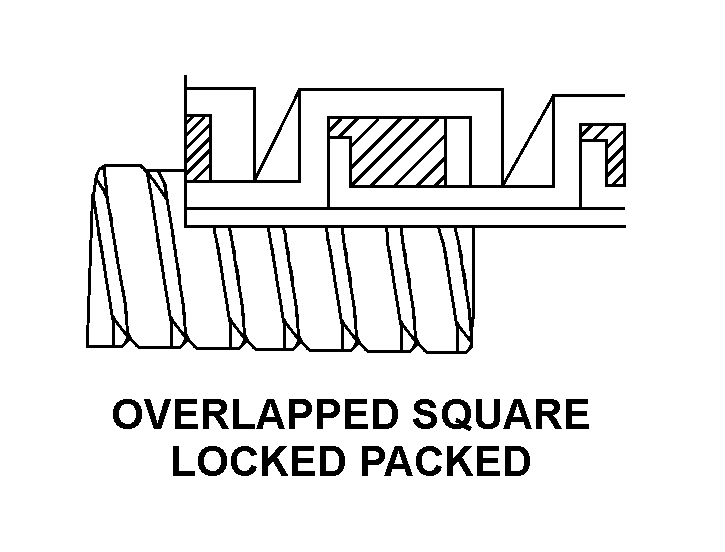

OVERLAPPED SQUARE LOCKED PACKED
Cross Reference | NSN 4720-00-470-6654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103257 | 81795 | ALLIANZ SWEEPER COMPANY |
Technical Data | NSN 4720-00-470-6654
| Characteristic | Specifications |
|---|---|
| EXTERIOR COLOR | NATURAL |
| MEASURING METHOD AND LENGTH | RL34.000 INCHES NOMINAL |
| INNER CONVEYING TUBE STYLE | OVERLAPPED SQUARE LOCKED PACKED |
| CROSS-SECTIONAL SHAPE STYLE | ROUND |
| SUPPLEMENTARY FEATURES | THIS ITEM HAS BEEN REVIEWED FOR ASBESTOS MATERIAL. THE CURRENT APPROVED SOURCES 81795 HAVE INDICATED THEIR PART NUMBER CONTAINED ASBESTOS PRIOR TO 1984. THEY CONTINUE TO MANUFACTURE THE SAME PART NUMBER WITHOUT ASBESTOS MATERIAL AFTER 1984 |
| INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| OUTSIDE DIAMETER | 3.200 INCHES NOMINAL |
