NSN 4730-00-030-5881
Part Details | TUBE COUPLING BODY
4730-00-030-5881 An incomplete fitting which, when installed is designed to join together in a straight line two tubes and/or tube fittings of the same size. The item may have a complete connection on one end; the other end always requires an additional nut, sleeve, ferrule or the like to make a complete end connection.
Alternate Parts: GC550EG6B, 830516, 83051-6, 4730-00-030-5881, 00-030-5881, 4730000305881, 000305881
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 26, 1972 | 00-030-5881 | 32835 ( COUPLING BODY, TUBE ) |
REFERENCE DRAWINGS & PICTURES

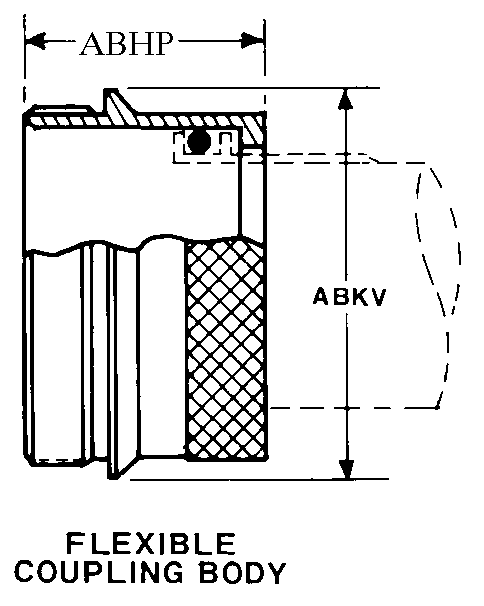

FLEXIBLE COUPLING BODY
Cross Reference | NSN 4730-00-030-5881
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GC550EG6B | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
| 83051-6 | 79326 | TRANSDIGM INCDBA ADEL WIGGINS GROUP- MILITARY |
Technical Data | NSN 4730-00-030-5881
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | FLEXIBLE COUPLING BODY |
| OVERALL LENGTH | 0.655 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.810 INCHES MAXIMUM |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| THREAD SIZE | 0.812-12 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
