NSN 4730-00-030-7480
Part Details | PACKING NUT
4730-00-030-7480 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.
Alternate Parts: 13W12293, 102611, 102611, 4730-00-030-7480, 00-030-7480, 4730000307480, 000307480
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | SEP 21, 1966 | 00-030-7480 | 18028 ( PACKING NUT ) |

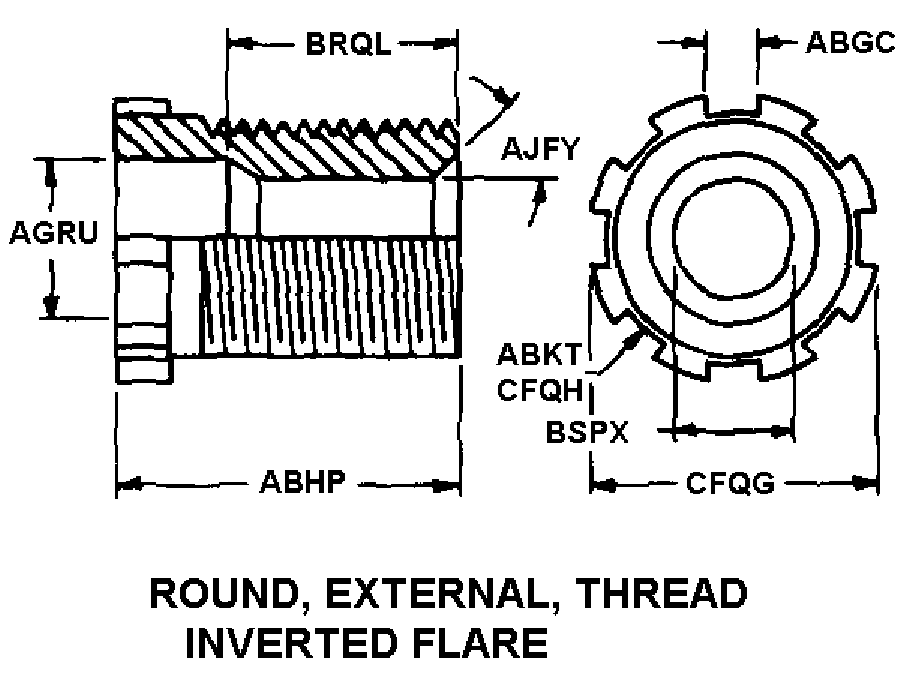

REFERENCE DRAWINGS & PICTURES
ROUND, EXTERNAL THREAD, INVERTED FLARE
Cross Reference | NSN 4730-00-030-7480
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13W12293 | 05415 | LINDE LIFT TRUCK CORP. |
| 102611 | 05415 | LINDE LIFT TRUCK CORP. |
| 102611 | 556A6 | LINDE MATERIAL HANDLING NORTHAMERICA CORP |
Technical Data | NSN 4730-00-030-7480
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | ROUND, EXTERNAL THREAD, INVERTED FLARE |
| THREAD SIZE | 1.188 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| SCREW THREAD LOCATION | EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| SLOT WIDTH | 0.840 INCHES NOMINAL |
| OVERALL LENGTH | 1.400 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 2.558 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.980 INCHES NOMINAL |
| MAJOR UNTHREADED OUTSIDE DIAMETER | 3.500 INCHES NOMINAL |
| HOLE OR SLOT QUANTITY | 6 |
| THREAD CLASS | 2A |
