NSN 4730-00-033-4856
Part Details | REDUCING TUBE COUPLING NUT
4730-00-033-4856 A tube coupling nut with the shank end accommodating a smaller tube size than is accommodated by the tube fitting which connects to the threaded end.
Alternate Parts: 210422, 210422, 210422, 4730-00-033-4856, 00-033-4856, 4730000334856, 000334856
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-033-4856 | 03860 ( NUT, TUBE COUPLING, REDUCING ) |
REFERENCE DRAWINGS & PICTURES

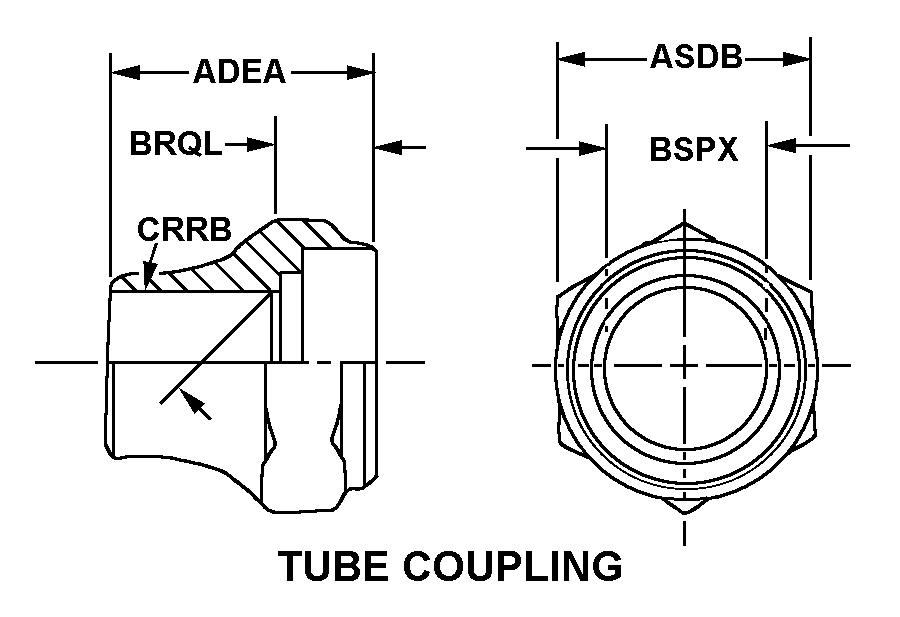

TUBE COUPLING
Cross Reference | NSN 4730-00-033-4856
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 210422 | 00088 | ROYAL OAK GAGE INC |
| 210422 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 210422 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4730-00-033-4856
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 1.500 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD PITCH DIAMETERS | +1.4594 TO +1.4634 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | TUBE COUPLING |
| NUT HEIGHT | 1.290 INCHES MINIMUM AND 1.310 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 1.730 INCHES MINIMUM AND 1.752 INCHES MAXIMUM |
| LENGTH TO SHOULDER | 0.550 INCHES MINIMUM AND 0.570 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 1.150 INCHES MINIMUM AND 1.170 INCHES MAXIMUM |
| SEAT ANGLE | 45.00 DEGREES NOMINAL |
| FABRICATION METHOD | FORGED |
| NOMINAL TUBE OUTSIDE DIAMETER | 1.000 INCHES |
