NSN 4730-00-035-6733
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-035-6733 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: NAS1239, NAS1239A6, AS18280, 4730-00-035-6733, 00-035-6733, 4730000356733, 000356733
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 10, 1972 | 00-035-6733 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
REFERENCE DRAWINGS & PICTURES

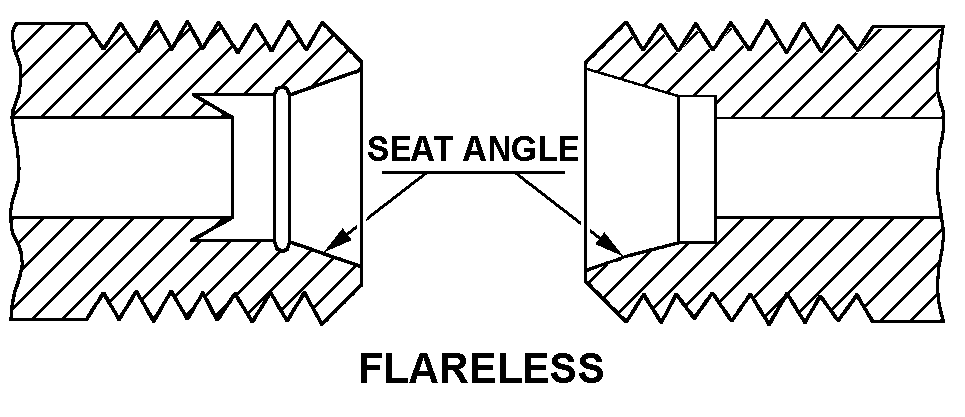

FLARELESS
1 FLUID CONNECTION
Cross Reference | NSN 4730-00-035-6733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1239 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| NAS1239A6 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
| AS18280 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 4730-00-035-6733
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 7 1 FLUID CONNECTION |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| THICKNESS | 0.974 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| DEG BETWEEN OUTLETS | 45.0 |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | FLARELESS |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/8 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 9/16 IN-18 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 12.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
