NSN 4730-00-036-4421
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-036-4421 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: 1502415, 12201064, 122-01064, WH1120106, WH112-0106, 8332586, 4730-00-036-4421, 00-036-4421, 4730000364421, 000364421
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-036-4421 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
REFERENCE DRAWINGS & PICTURES

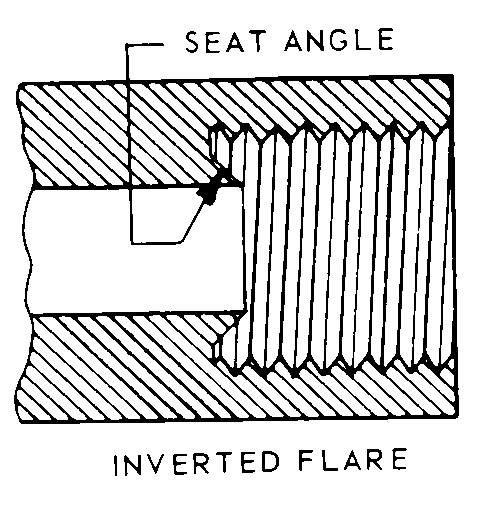

INVERTED FLARE
1 FLUID CONNECTION
Cross Reference | NSN 4730-00-036-4421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1502415 | 12204 | DAIMLER CHRYSLER |
| 122-01064 | 79470 | DANA CORPWEATHERHEAD DIV |
| WH112-0106 | 22852 | SPALLA INC |
| 8332586 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4730-00-036-4421
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| SURFACE TREATMENT | 0$DZNA000 |
| STYLE DESIGNATOR | 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| THICKNESS | 0.563 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.5302 INCHES MINIMUM AND 0.5322 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN. OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 7/16 IN.-24 |
| SCREW THREAD SERIES DESIGNATOR | UNS |
| THREAD PITCH DIAMETERS | +0.4105 TO +0.4131 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 42.0 |
| BOLT HOLE FLATS SERRATIONS | PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
