NSN 4730-00-036-5732
Part Details | FLUID PASSAGE BOLT
4730-00-036-5732 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 1016464, 10-16464, 3A1PS1353, 1016464, 10-16464, 3A1PS1353, 1016464, 10-16464, 4730-00-036-5732, 00-036-5732, 4730000365732, 000365732
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-036-5732 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES

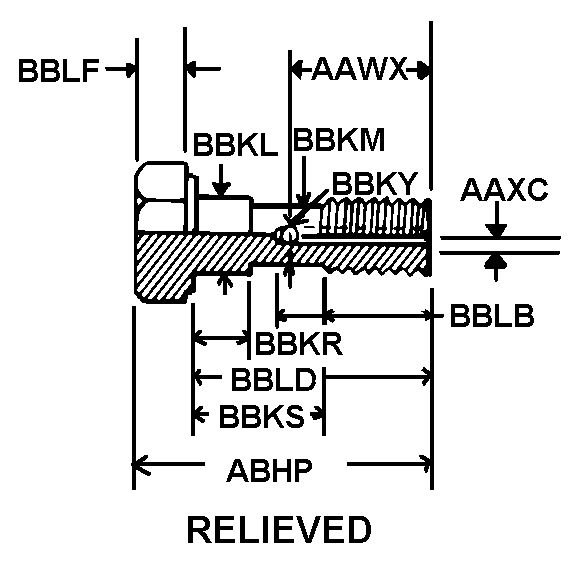

RELIEVED
FLARED
FLARED
HEXAGON
Cross Reference | NSN 4730-00-036-5732
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-16464 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 3A1PS1353 | 11976 | CHICAGO PNEUMATIC TOOL CO |
| 10-16464 | 0PYA5 | CONTINENTAL MOTORS, INC. |
| 3A1PS1353 | 88807 | NEAC COMPRESSOR SERVICE USA INC |
| 10-16464 | 59501 | UNISON INDUSTRIES, LLC |
Technical Data | NSN 4730-00-036-5732
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| BODY STYLE | RELIEVED |
| CONCENTRIC HOLE DEPTH | 1.562 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.468 INCHES NOMINAL |
| OVERALL LENGTH | 1.781 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.703 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.625 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.281 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.937 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.062 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.562 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.219 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARED |
| FIRST END SEAT ANGLE | 30.0 DEGREES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.625 INCHES |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | LEFT-HAND |
| FIRST END THREAD LENGTH | 0.625 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.937 INCHES NOMINAL |
| SPECIAL FEATURES | 1.5 MM PITCH |
