NSN 4730-00-041-4212
Part Details | LUBRICATION FITTING
4730-00-041-4212 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: M4515, M4515, 4730-00-041-4212, 00-041-4212, 4730000414212, 000414212
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-041-4212 | 03177 ( FITTING, LUBRICATION ) |

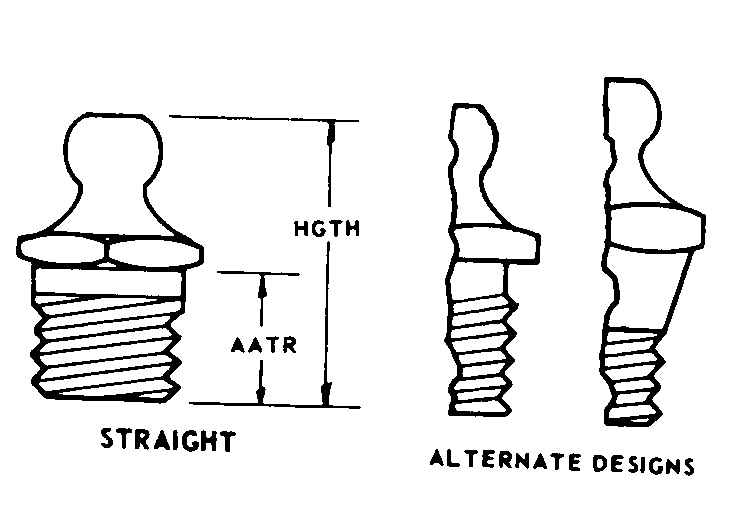

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-041-4212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M4515 | 28298 | SMITH AND SMITH AIRCRAFT CO |
| M4515 | 0CVN0 | SMITH AND SMITH AIRCRAFT INTL LTD |
Technical Data | NSN 4730-00-041-4212
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK LENGTH | 0.130 INCHES NOMINAL |
| HEIGHT | 0.460 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| SPECIAL FEATURES | NO BALL CHECK |
