NSN 4730-00-045-5574
Part Details | PIPE BUSHING
4730-00-045-5574 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Alternate Parts: WWP460, WW-P-460, MS1431510Z, MS14315-10Z, 4730-00-045-5574, 00-045-5574, 4730000455574, 000455574
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-045-5574 | 03779 ( BUSHING, PIPE ) |
REFERENCE DRAWINGS & PICTURES

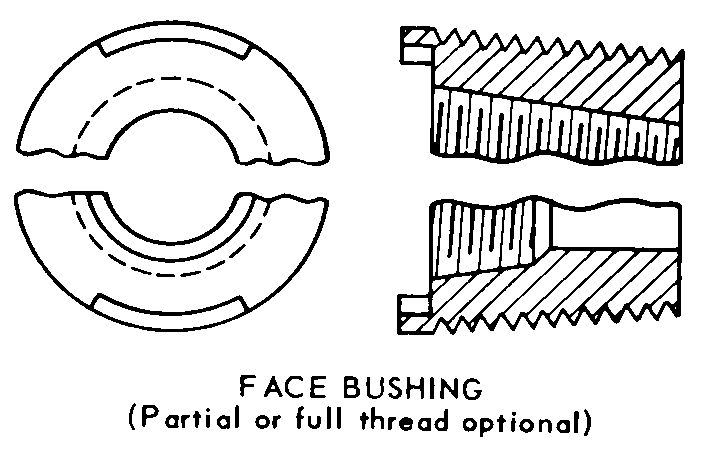

FACE BUSHING
Cross Reference | NSN 4730-00-045-5574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WW-P-460 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| MS14315-10Z | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 4730-00-045-5574
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | FACE BUSHING |
| EXTERNAL THREAD SIZE | 1-11-1/2 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 3/4-14 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
