NSN 4730-00-048-4878
Part Details | PIPE BUSHING
4730-00-048-4878 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Alternate Parts: 6715037, 6715037, 4730-00-048-4878, 00-048-4878, 4730000484878, 000484878
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-048-4878 | 03779 ( BUSHING, PIPE ) |

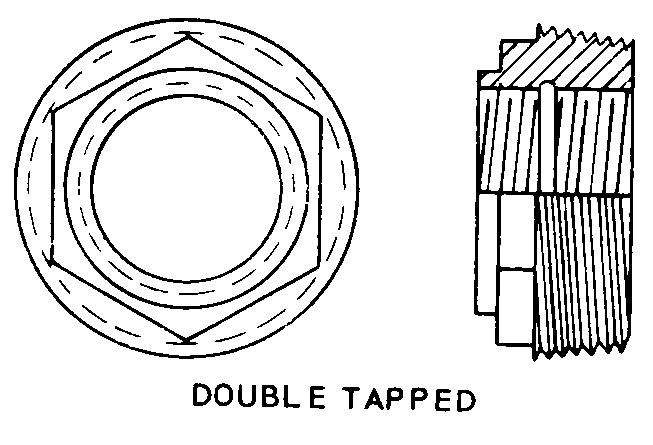

REFERENCE DRAWINGS & PICTURES
OUTSIDE HEXAGON
Cross Reference | NSN 4730-00-048-4878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6715037 | 73342 | ALLISON TRANSMISSION, INC. |
| 6715037 | 24617 | GENERAL MOTORS CORP |
Technical Data | NSN 4730-00-048-4878
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | OUTSIDE HEXAGON |
| EXTERNAL THREAD SIZE | 3/4 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | ANY ACCEPTABLE |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 9/16-18 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | NFS |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
