NSN 4730-00-049-2310
Part Details | HOSE COUPLING NUT
4730-00-049-2310 A cylindrical item which serves as the outer shell of a multipiece end connection designed to directly grip the end of a hose.
Alternate Parts: 14832124, 148-32124, 21224D, 212-24D, 14832124, 148-32124, MS2459124, MS24591-24, MILDTL5070, MIL-DTL-5070, 62G423, 62G42-3, 4730-00-049-2310, 00-049-2310, 4730000492310, 000492310
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-049-2310 | 03858 ( NUT, HOSE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

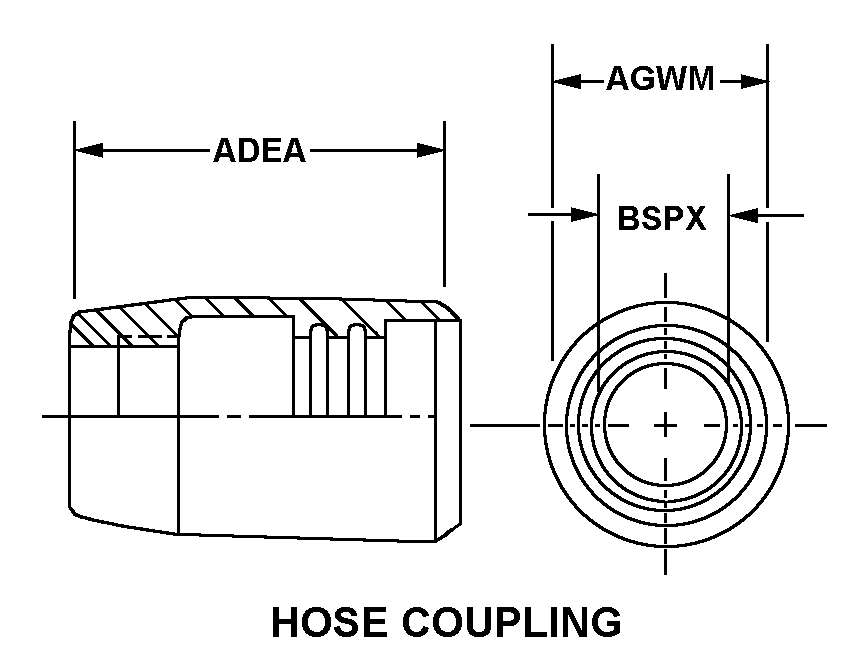

HOSE COUPLING
Cross Reference | NSN 4730-00-049-2310
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 148-32124 | 14798 | DESIGNED METAL CONNECTIONS, INC.DBA PERMASWAGE USA |
| 212-24D | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| 148-32124 | 32142 | HYDRASEARCH CO., INC. |
| MS24591-24 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| MIL-DTL-5070 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 62G42-3 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Technical Data | NSN 4730-00-049-2310
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 1.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | LEFT-HAND |
| NUT STYLE | HOSE COUPLING |
| NUT HEIGHT | 1.830 INCHES MINIMUM AND 1.860 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 1.907 INCHES MINIMUM AND 1.937 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 1.502 INCHES MINIMUM AND 1.515 INCHES MAXIMUM |
| HOSE NOMINAL SIZE | 1.375 INCHES |
| SPECIAL FEATURES | GRUMMAN A10 AIRCRAFT |
