NSN 4730-00-050-7285
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-050-7285 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: A302659, A302659, 4730-00-050-7285, 00-050-7285, 4730000507285, 000507285
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | NOV 10, 1972 | 00-050-7285 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

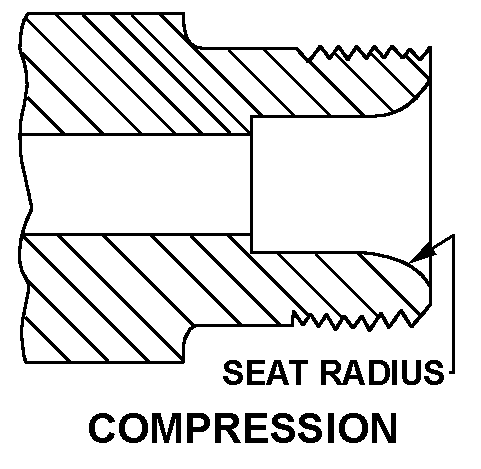

REFERENCE DRAWINGS & PICTURES
INVERTED FLARE
1 FLUID CONNECTION
Cross Reference | NSN 4730-00-050-7285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A302659 | U9143 | BAE SYSTEMS (OPERATIONS) LTD |
| A302659 | K0289 | BRITISH AEROSPACE MILITARYAIRCRAFT & AEROSTRUCTURES |
Technical Data | NSN 4730-00-050-7285
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | 6 1 FLUID CONNECTION |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.210 INCHES NOMINAL |
| THICKNESS | 0.900 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.625 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | INVERTED FLARE |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 0.500 IN. NOM PIPE SIZE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 1/2 IN.-12 |
| THREAD CLASS | 2A |
| THREAD PITCH DIAMETERS | +0.8250 TO +0.8286 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | INCLUDED |
| SEAT ANGLE IN DEG | 30.0 |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
